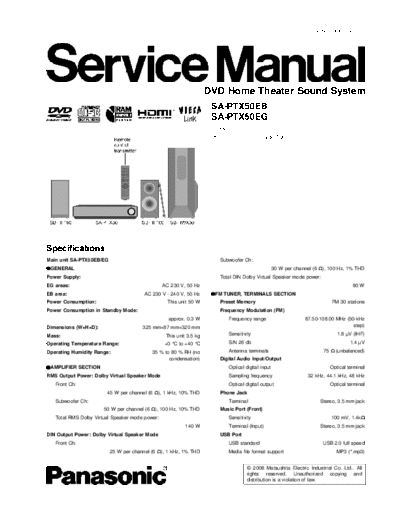

Image preview - the first page of the document
>> Download MD0803027CE_PRINTDB documenatation <<Text preview - extract from the document ORDER NO. MD0803027CE
DVD Home Theater Sound System
SA-PTX50EB
SA-PTX50EG
Colour
(K).......................Black Type
Specifications
Main unit SA-PTX50EB/EG Subwoofer Ch:
GENERAL 30 W per channel (6 ), 100 Hz, 1% THD
Power Supply: Total DIN Dolby Virtual Speaker mode power:
EG areas: AC 230 V, 50 Hz 80 W
EB area: AC 230 V - 240 V, 50 Hz FM TUNER, TERMINALS SECTION
Power Consumption: This unit 50 W Preset Memory FM 30 stations
Power Consumption in Standby Mode: Frequency Modulation (FM)
approx. 0.3 W Frequency range 87.50-108.00 MHz (50-kHz
Dimensions (W
