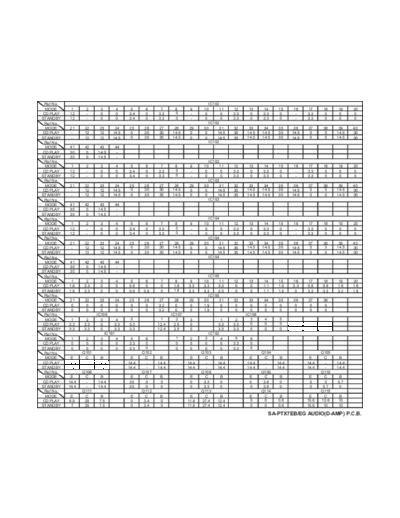

Image preview - the first page of the document
>> Download aa_ada_v documenatation <<
Text preview - extract from the document
Ref No. IC102
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
CD PLAY 12 - 0 0 3.4 0 3.3 0 - 0 0 3.3 0 3.3 0 - 3.3 0 0 0
STANDBY 12 - 0 0 3.4 0 3.3 0 - 0 0 3.3 0 3.3 0 - 3.3 0 0 0
Ref No. IC102
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
CD PLAY - 12 12 14.5 0 30 30 14.5 0 0 14.5 30 14.5 14.5 30 14.5 0 0 14.5 30
STANDBY - 12 12 14.5 0 30 30 14.5 0 0 14.5 30 14.5 14.5 30 14.5 0 0 14.5 30
Ref No. IC102
MODE 41 42 43 44
CD PLAY 30 0 14.5 -
STANDBY 30 0 14.5 -
Ref No. IC103
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
CD PLAY 12 - 0 0 3.4 0 3.3 0 - 0 0 3.3 0 3.3 0 - 3.3 0 0 0
STANDBY 12 - 0 0 3.4 0 3.3 0 - 0 0 3.3 0 3.3 0 - 3.3 0 0 0
Ref No. IC103
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
CD PLAY - 12 12 14.5 0 30 30 14.5 0 0 14.5 30 14.5 14.5 30 14.5 0 0 14.5 30
STANDBY - 12 12 14.5 0 30 30 14.5 0 0 14.5 30 14.5 14.5 30 14.5 0 0 14.5 30
Ref No. IC103
MODE 41 42 43 44
CD PLAY 30 0 14.5 -
STANDBY 30 0 14.5 -
Ref No. IC104
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
CD PLAY 12 - 0 0 3.4 0 3.3 0 - 0 0 3.3 0 3.3 0 - 3.3 0 0 0
STANDBY 12 - 0 0 3.4 0 3.3 0 - 0 0 3.3 0 3.3 0 - 3.3 0 0 0
Ref No. IC104
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
CD PLAY - 12 12 14.5 0 30 30 14.5 0 0 14.5 30 14.5 14.5 30 14.5 0 0 14.5 30
STANDBY - 12 12 14.5 0 30 30 14.5 0 0 14.5 30 14.5 14.5 30 14.5 0 0 14.5 30
Ref No. IC104
MODE 41 42 43 44
CD PLAY 30 0 14.5 -
STANDBY 30 0 14.5 -
Ref No. IC105
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
CD PLAY 1.8 3.3 0 0 0.8 0 0 1.6 3.3 3.3 3.3 0 0 1.1 1.9 3.3 0.8 0.8 1.6 1.6
STANDBY 1.8 3.3 0 0 0.8 0.9 0 1.6 3.3 3.3 3.3 0 0 1.1 1.9 0 3.3 3.3 3.2 1.6
Ref No. IC105
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
CD PLAY 0 0 0 0 0 0 3.2 0 0 1.9 0 0 0 0 0 0 0 0
STANDBY 0 0 0 0 0 0 3.2 0 0 1.9 0 0 0 0 0 0 0 0
Ref No. IC106 IC107 IC108
MODE 1 2 3 4 5 1 2 3 1 2 3 4 5
CD PLAY 3.3 3.3 0 3.3 3.3 12.4 2.5 0 3.3 3.3 0 0 0
STANDBY 3.3 3.3 0 3.3 3.3 12.4 2.5 0 3.3 3.3 0 0 0
Ref No. IC151 IC152
MODE 1 2 3 4 5 6 1 2 3 4 5 6
CD PLAY 0 0 0 0 3.3 0 0 0 0 0 3.3 0
STANDBY 0 0 0 0 3.3 0 0 0 0 0 3.3 0
Ref No. Q101 Q102 Q103 Q104 Q105
MODE E C B E C B E C B E C B E C B
CD PLAY 14.4 - 14.4 14.4 - 14.4 14.4 - 14.4 14.4 - 14.4 14.4 - 14.4
STANDBY 0.6 - 0.6 14.4 - 14.4 14.4 - 14.4 14.4 - 14.4 14.4 - 14.4
Ref No. Q106 Q107 Q108 Q109 Q110
MODE E C B E C B E C B E C B E C B
CD PLAY 14.4 - 14.4 30 0 0 0 3.3 0 0 3.8 0 0 0 0.7
STANDBY 14.4 - 14.4 30 0 0 0 3.3 0 0 3.8 0 0 0.7 0
Ref No. Q111 Q112 Q113 Q114 Q115
MODE E C B E C B E C B E C B E C B
CD PLAY 6.9 29 7.5 0 3.4 0 11.8 27.4 12.4 0 0 0.6 10.6 10.6 10
STANDBY 7 29 7.5 0 3.4 0 11.8 27.4 12.4 0 0 0.6 10.6 10 10
SA-PTX7EB/EG AUDIO(D-AMP) P.C.B.
