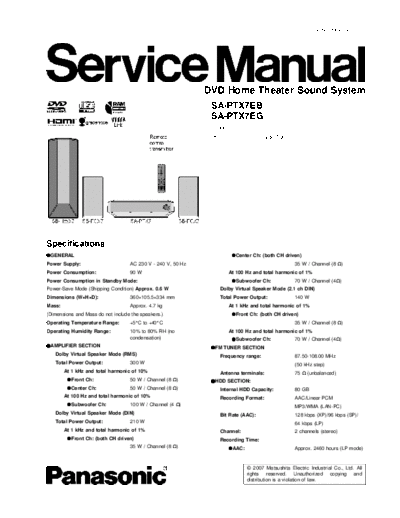

Image preview - the first page of the document



>> Download MD0704019CE_A_SA-PTX7EB documenatation <<

Text preview - extract from the document

                                                                                                        ORDER NO. MD0704019CE




                                                             DVD Home Theater Sound System
                                                              SA-PTX7EB
                                                              SA-PTX7EG
                                                              Colour
                                                              (K).......................Black Type




Specifications
!GENERAL                                                               !Center Ch: (both CH driven)
Power Supply:                      AC 230 V - 240 V, 50 Hz                                           35 W / Channel (8 )
Power Consumption:                 90 W                               At 100 Hz and total harmonic of 1%
Power Consumption in Standby Mode:                                     !Subwoofer Ch:                70 W / Channel (4)
Power-Save Mode (Shipping Condition) Approx. 0.6 W                Dolby Virtual Speaker Mode (2.1 ch DIN)
Dimensions (W
