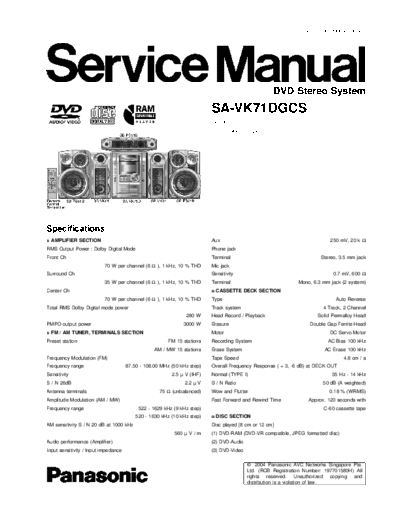

Image preview - the first page of the document
>> Download panasonic_sa-vk71dgcs_sm documenatation <<
Text preview - extract from the document
ORDER NO. MD0407368C3
DVD Stereo System
SA-VK71DGCS
Colour
(S)... Silver Type
Specifications
n AMPLIFIER SECTION Aux 250 mV, 20 k
RMS Output Power : Dolby Digital Mode Phone jack
Front Ch Terminal Stereo, 3.5 mm jack
70 W per channel (6 ), 1 kHz, 10 % THD Mic jack
Surround Ch Sensitivity 0.7 mV, 600
35 W per channel (6 ), 1 kHz, 10 % THD Terminal Mono, 6.3 mm jack (2 system)
Center Ch n CASSETTE DECK SECTION
70 W per channel (6 ), 1 kHz, 10 % THD Type Auto Reverse
Total RMS Dolby Digital mode power Track system 4 Track, 2 Channel
280 W Head Record / Playback Solid Permalloy Head
PMPO output power 3000 W Erasure Double Gap Ferrite Head
n FM / AM TUNER, TERMINALS SECTION Motor DC Servo Motor
Preset station FM 15 stations Recording System AC Bias 100 kHz
AM / MW 15 stations Erase System AC Erase 100 kHz
Frequency Modulation (FM) Tape Speed 4.8 cm / s
Frequency range 87.50 - 108.00 MHz (50 kHz step) Overall Frequency Response ( + 3, -6 dB) at DECK OUT
