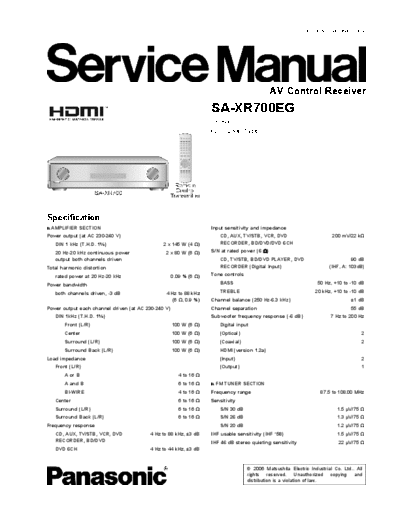

Image preview - the first page of the document



>> Download MD0608274CE_A_SA-XR700EG documenatation <<

Text preview - extract from the document

                                                                                                           ORDER NO. MD0608274CE




                                                                                             AV Control Receiver
                                                                   SA-XR700EG
                                                                   Colour
                                                                   (S)... Silver Type




Specification
n AMPLIFIER SECTION                                                Input sensitivity and impedance
Power output (at AC 230-240 V)                                        CD, AUX, TV/STB, VCR, DVD                         200 mV/22 k
   DIN 1 kHz (T.H.D. 1%)                       2 x 145 W (4 )         RECORDER, BD/DVD/DVD 6CH

   20 Hz-20 kHz continuous power                2 x 80 W (6 )      S/N at rated power (6 )
   output both channels driven                                        CD, TV/STB, BD/DVD PLAYER, DVD                             90 dB
Total harmonic distortion                                             RECORDER (Digital Input)                         (IHF, A: 103dB)

   rated power at 20 Hz-20 kHz                       0.09 % (6 )   Tone controls

Power bandwidth                                                       BASS                                        50 Hz, +10 to -10 dB

   both channels driven, -3 dB                  4 Hz to 88 kHz        TREBLE                                     20 kHz, +10 to -10 dB
                                                  (6 , 0.9 %)      Channel balance (250 Hz-6.3 kHz)
