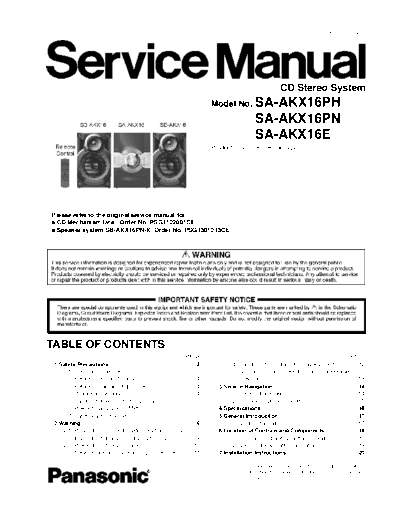

Image preview - the first page of the document
>> Download PSG1301012CE_PRINTDB documenatation <<
Text preview - extract from the document
PSG1301012CE
CD Stereo System
Model No. SA-AKX16PH
SA-AKX16PN
SA-AKX16E
Product Color: (K)...Black Type
Please refer to the original service manual for:
CD Mechanism Unit , Order No. PSG1102001CE
Speaker system SB-AKX16PN-K, Order No. PSG1301013CE
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 2.4. Handling Precautions for Traverse Unit ------------ 12
1.1. General Guidelines---------------------------------------- 3 2.5. Grounding for electrostatic breakdown
1.2. Before Use (For PH only)-------------------------------- 4 prevention-------------------------------------------------- 13
1.3. Before Repair and Adjustment ------------------------- 4 3 Service Navigation --------------------------------------------- 14
1.4. Protection Circuitry ---------------------------------------- 4 3.1. Service Information -------------------------------------- 14
1.5. Caution For AC Cord (For E only)--------------------- 5 3.2. Firmware Update Procedure -------------------------- 15
1.6. Power Supply using SMPS ----------------------------- 6 4 Specifications ---------------------------------------------------- 16
1.7. Safety Parts Information --------------------------------- 8 5 General/Introduction------------------------------------------- 17
2 Warning -------------------------------------------------------------- 9 5.1. Media Information---------------------------------------- 17
2.1. Prevention of Electrostatic Discharge (ESD) 6 Location of Controls and Components------------------ 18
to Electrostatically Sensitive (ES) Devices---------- 9 6.1. Remote Control Key Button Operation ------------- 18
2.2. Precaution of Laser Diode------------------------------10 6.2. Main Unit Key Button Operation---------------------- 19
2.3. Service caution based on Legal restrictions ------- 11 7 Installation Instructions -------------------------------------- 20
