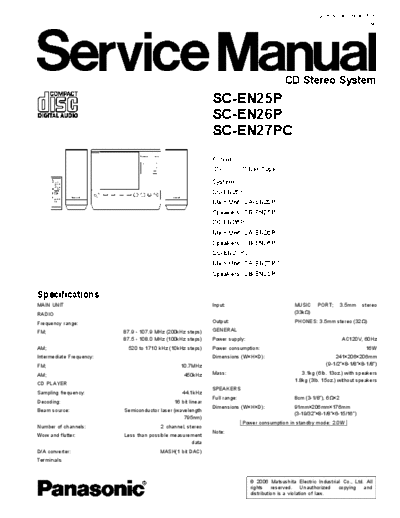

Image preview - the first page of the document
SC-EN25P_EN26P_EN27PC


>> Download SC-EN25P_EN26P_EN27PC documenatation <<

Text preview - extract from the document
                                                                                                        ORDER NO.AD0603021CE
                                                                                                                          A6




                                                                                            CD Stereo System
                                                              SC-EN25P
                                                              SC-EN26P
                                                              SC-EN27PC
                                                              Colour
                                                              (S)............Silver Type
                                                              System
                                                              SC-EN25P
                                                              Main Unit: SA-EN25P
                                                              Speakers: SB-EN25P
                                                              SC-EN26P
                                                              Main Unit: SA-EN26P
                                                              Speakers: SB-EN26P
                                                              SC-EN27PC
                                                              Main Unit: SA-EN27PC
                                                              Speakers: SB-EN25P


Specifications
MAIN UNIT                                                     Input:                            MUSIC     PORT;     3.5mm    stereo
RADIO                                                                                           (33k)

Frequency range:                                              Output:                           PHONES: 3.5mm stereo (32)

FM;                       87.9 - 107.9 MHz (200kHz steps)     GENERAL
                          87.5 - 108.0 MHz (100kHz steps)     Power supply:                                         AC120V, 60Hz
AM;                        520 to 1710 kHz (10kHz steps)      Power consumption:                                              16W
Intermediate Frequency:                                       Dimensions (W
