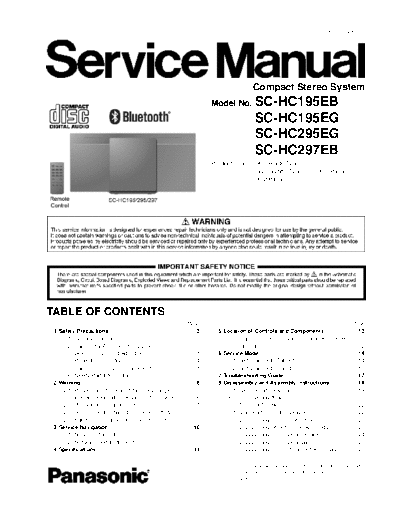

Image preview - the first page of the document
>> Download Panasonic_SC-HC195EB_HC195EG_HC295EG_HC297EB_[X] documenatation <<Text preview - extract from the document PSG1602003CE
Compact Stereo System
Model No. SC-HC195EB
SC-HC195EG
SC-HC295EG
SC-HC297EB
Product Color: (K)...Black Type
(W)...White Type (For HC195EG,
HC295EG)
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 5 Location of Controls and Components------------------ 12
1.1. General Guidelines---------------------------------------- 3 5.1. Main Unit & Remote Control Key Button
1.2. Caution for AC Cord (For EB only)-------------------- 4 Operations ------------------------------------------------- 12
1.3. Before Repair and Adjustment ------------------------- 4 6 Service Mode ----------------------------------------------------- 14
1.4. Protection Circuitry ---------------------------------------- 4 6.1. Self Diagnostic Table 1 --------------------------------- 14
1.5. Caution For Fuse Replacement------------------------ 4 6.2. Self Diagnostic Function Error Code ---------------- 15
1.6. Safety Part Information----------------------------------- 5 7 Troubleshooting Guide --------------------------------------- 17
2 Warning -------------------------------------------------------------- 6 8 Disassembly and Assembly Instructions--------------- 19
2.1. Prevention of Electro Static Discharge (ESD) 8.1. Service Fixture & Tools --------------------------------- 19
to Electrostatically Sensitive (ES) Devices---------- 6 8.2. Disassembly flow chart --------------------------------- 20
2.2. Precaution of Laser Diode------------------------------- 7 8.3. Types of Screws------------------------------------------ 22
2.3. Service caution based on Legal restrictions -------- 8 8.4. Main Parts Location Diagram ------------------------- 22
2.4. Handling Precaution for Traverse Unit --------------- 9 8.5. Disassembly of Base Stand Unit --------------------- 23
3 Service Navigation ----------------------------------------------10 8.6. Disassembly of Net Frame Assembly (L) & (R)--- 23
3.1. Service Information --------------------------------------10 8.7. Disassembly of CD Door Ornament----------------- 24
3.2. Software Update through USB ------------------------10 8.8. Disassembly of CD Door Base ----------------------- 24
4 Specifications ----------------------------------------------------11 8.9. Disassembly of Front Cabinet Assembly----------- 25
