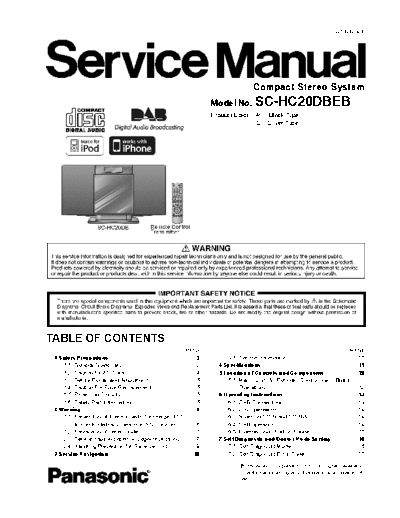

Image preview - the first page of the document
>> Download PSG1003034CE_PRINTDB documenatation <<
Text preview - extract from the document
PSG1003034CE
Compact Stereo System
Model No. SC-HC20DBEB
Product Color: (K)...Black Type
(S)...Silver Type
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 3.1. Service Information -------------------------------------- 10
1.1. General Guidelines---------------------------------------- 3 4 Specifications ---------------------------------------------------- 11
1.2. Caution for AC Cord -------------------------------------- 4 5 Location of Controls and Components------------------ 12
1.3. Before Repair and Adjustment ------------------------- 5 5.1. Main Unit & Remote Control Key Button
1.4. Caution For Fuse Replacement------------------------ 5 Operations ------------------------------------------------- 12
1.5. Protection Circuitry ---------------------------------------- 5 6 Operating Instructions ---------------------------------------- 13
1.6. Safety Part Information----------------------------------- 5 6.1. DAB Connections ---------------------------------------- 13
2 Warning -------------------------------------------------------------- 6 6.2. Disc operations ------------------------------------------- 14
2.1. Prevention of Electro Static Discharge (ESD) 6.3. Notes on CD-R and CD-RW -------------------------- 14
to Electrostatically Sensitive (ES) Devices---------- 6 6.4. DAB operation -------------------------------------------- 14
2.2. Precaution of Laser Diode------------------------------- 7 6.5. External unit (iPod or iPhone)------------------------- 15
2.3. Service caution based on Legal restrictions -------- 8 7 Self Diagnostic and Doctor Mode Setting -------------- 16
2.4. Handling Precaution for Traverse Unit --------------- 9 7.1. Self Diagnostic Mode ----------------------------------- 16
3 Service Navigation ----------------------------------------------10 7.2. Self Diagnostic Error Code ---------------------------- 17
