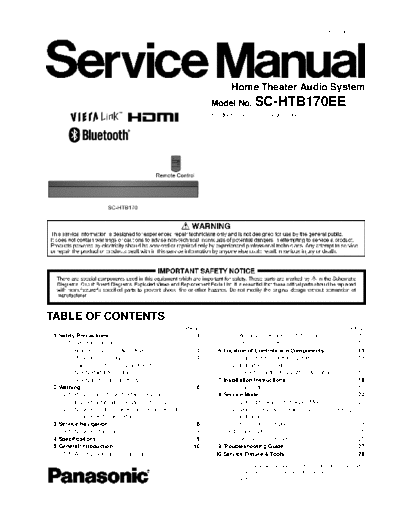

Image preview - the first page of the document
>> Download Panasonic_SC-HTB170EE documenatation <<
Text preview - extract from the document
PSG1304017CE
Home Theater Audio System
Model No. SC-HTB170EE
Product Color: (S)...Silver Type
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 5.2. About VIERA Link "HDAVI Control" ----------------- 11
1.1. General Guidelines---------------------------------------- 3 5.3. Others (Licenses) ---------------------------------------- 12
1.2. Before Repair and Adjustment ------------------------- 4 6 Location of Controls and Components------------------ 13
1.3. Protection Circuitry ---------------------------------------- 4 6.1. Main Unit Key Button Operations -------------------- 13
1.4. Caution For Fuse Replacement------------------------ 4 6.2. Indicator illumination ------------------------------------ 14
1.5. Safety Part Information----------------------------------- 5 6.3. Remote Control Key Button Operations------------ 15
1.6. Safety Installation Instructions ------------------------- 5 7 Installation Instructions -------------------------------------- 16
2 Warning -------------------------------------------------------------- 6 7.1. Connections ----------------------------------------------- 16
2.1. Prevention of Electrostatic Discharge (ESD) 8 Service Mode ----------------------------------------------------- 20
to Electrostatically Sensitive (ES) Devices---------- 6 8.1. Method to enter into Service Mode ------------------ 20
2.2. Service caution based on Legal restrictions 8.2. Model Display Details by LED Blinking
(Lead Free Solder, (PbF)) ------------------------------- 7 Indicators--------------------------------------------------- 20
3 Service Navigation ----------------------------------------------- 8 8.3. Error Codes Display ------------------------------------- 23
3.1. Service Information --------------------------------------- 8 8.4. Cold start --------------------------------------------------- 25
4 Specifications ----------------------------------------------------- 9 8.5. SET AUDIO DELAY ------------------------------------- 25
5 General/Introduction -------------------------------------------10 9 Troubleshooting Guide --------------------------------------- 27
5.1. About Bluetooth and Operation -----------------------10 10 Service Fixture & Tools --------------------------------------- 29
