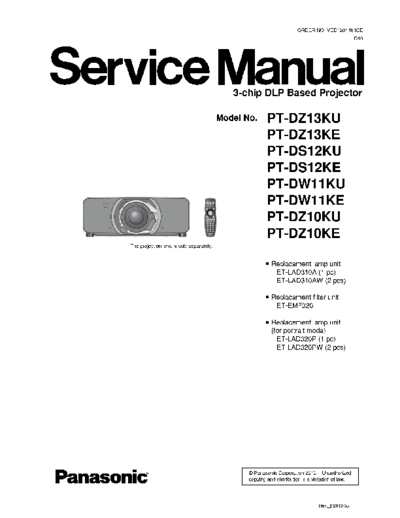

                                                                       ORDER NO. VED1304464CE
                                                                                                   D10




                                             3-chip DLP Based Projector

                                          Model No.      PT-DZ13KU
                                                         PT-DZ13KE
                                                         PT-DS12KU
                                                         PT-DS12KE
                                                         PT-DW11KU
                                                         PT-DW11KE
                                                         PT-DZ10KU
                                                         PT-DZ10KE
The projection lens is sold separately.


                                                           Replacement lamp unit
                                                            ET-LAD310A (1 pc)
                                                            ET-LAD310AW (2 pcs)

                                                           Replacement filter unit
                                                            ET-EMF320

                                                           Replacement lamp unit
                                                           (for portrait mode)
                                                             ETLAD320P (1 pc)
                                                             ETLAD320PW (2 pcs)
