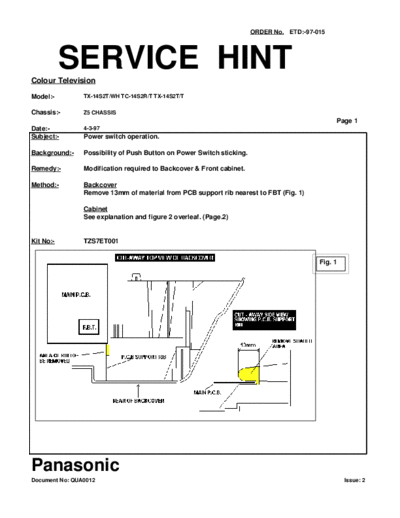

>> Download 97015 documenatation <<Text preview - extract from the document ORDER No. ETD:-97-015
SERVICE HINT
Colour Television
Model:- TX-14S2T/WH TC-14S2R/T TX-14S2T/T
Chassis:- Z5 CHASSIS
Page 1
Date:- 4-3-97
Subject:- Power switch operation.
Background:- Possibility of Push Button on Power Switch sticking.
Remedy:- Modification required to Backcover & Front cabinet.
Method:- Backcover
Remove 13mm of material from PCB support rib nearest to FBT (Fig. 1)
Cabinet
See explanation and figure 2 overleaf. (Page.2)
Kit No:- TZS7ET001
Fig. 1
Panasonic
Document No: QUA0012 Issue: 2
PAGE. 2
Method:- Cabinet
Attach self adhesive spacer to Right Hand side chassis support rib.
See Fig. 2 .
F
Fig. 2
