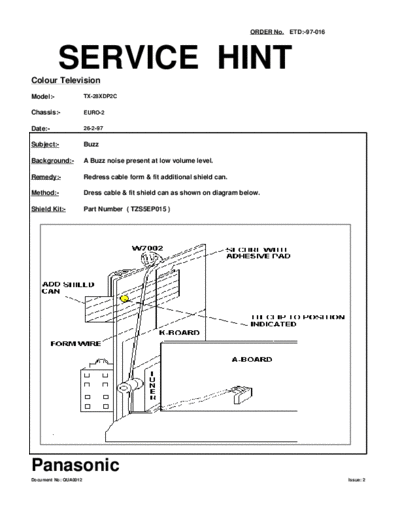

                                                                          ORDER No. ETD:-97-016




          SERVICE HINT
Colour Television
Model:-                TX-28XDP2C

Chassis:-              EURO-2

Date:-                 26-2-97

Subject:-              Buzz

Background:-           A Buzz noise present at low volume level.

Remedy:-               Redress cable form & fit additional shield can.

Method:-               Dress cable & fit shield can as shown on diagram below.

Shield Kit:-           Part Number ( TZS5EP015 )
