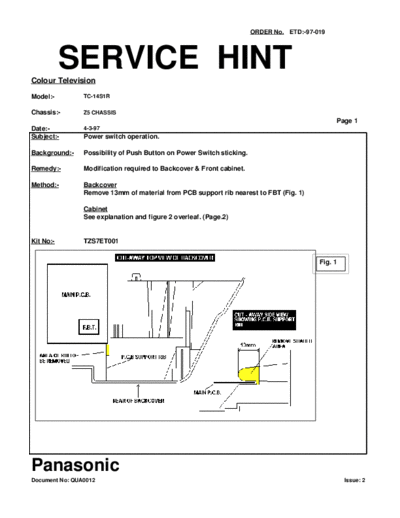

Image preview - the first page of the document



>> Download 97019 documenatation <<

Text preview - extract from the document

                                                                       ORDER No. ETD:-97-019




           SERVICE HINT
Colour Television

Model:-         TC-14S1R

Chassis:-       Z5 CHASSIS
                                                                                               Page 1
Date:-          4-3-97
Subject:-       Power switch operation.

Background:-    Possibility of Push Button on Power Switch sticking.

Remedy:-        Modification required to Backcover & Front cabinet.

Method:-        Backcover
                Remove 13mm of material from PCB support rib nearest to FBT (Fig. 1)

                Cabinet
                See explanation and figure 2 overleaf. (Page.2)


Kit No:-        TZS7ET001


                                                                                          Fig. 1




Panasonic
Document No: QUA0012                                                                               Issue: 2
                                                                           PAGE. 2




Method:-   Cabinet
           Attach self adhesive spacer to Right Hand side chassis support rib.
           See Fig. 2 .




                                                                                     F
Fig. 2
