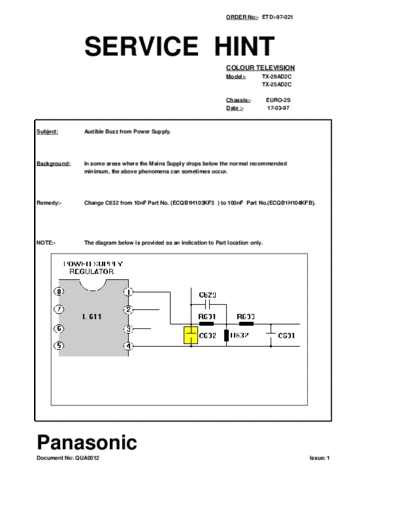

                                                                      ORDER No:- ETD:-97-021




               SERVICE HINT
                                                                      COLOUR TELEVISION
                                                                      Model:-      TX-29AD2C
                                                                                   TX-25AD2C

                                                                      Chassis:-        EURO-2S
                                                                      Date :-          17-03-97



Subject:       Audible Buzz from Power Supply.




Background:    In some areas where the Mains Supply drops below the normal recommended
               minimum, the above phenomena can sometimes occur.




Remedy:-       Change C632 from 10nF Part No. (ECQB1H103KF3 ) to 100nF Part No.(ECQB1H104KFB).




NOTE:-         The diagram below is provided as an indication to Part location only.




Panasonic
Document No: QUA0012                                                                              Issue: 1
