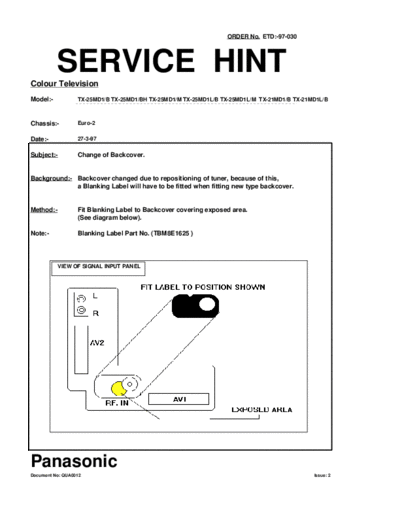

Image preview - the first page of the document



>> Download 97030 documenatation <<

Text preview - extract from the document

                                                                 ORDER No. ETD:-97-030




          SERVICE HINT
Colour Television
Model:-           TX-25MD1/B TX-25MD1/BH TX-25MD1/M TX-25MD1L/B TX-25MD1L/M TX-21MD1/B TX-21MD1L/B



Chassis:-         Euro-2

Date:-            27-3-97

Subject:-         Change of Backcover.


Background:- Backcover changed due to repositioning of tuner, because of this,
             a Blanking Label will have to be fitted when fitting new type backcover.


Method:-          Fit Blanking Label to Backcover covering exposed area.
                  (See diagram below).

Note:-            Blanking Label Part No. (TBM8E1625 )




           VIEW OF SIGNAL INPUT PANEL




Panasonic
Document No: QUA0012                                                                         Issue: 2
