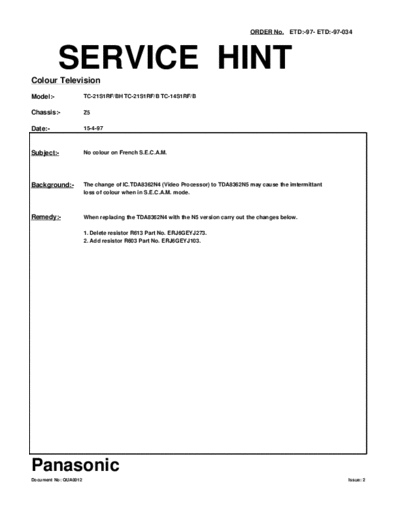

Image preview - the first page of the document



>> Download 97034 documenatation <<

Text preview - extract from the document

                                                                                  ORDER No. ETD:-97- ETD:-97-034




          SERVICE HINT
Colour Television
Model:-                TC-21S1RF/BH TC-21S1RF/B TC-14S1RF/B

Chassis:-              Z5

Date:-                 15-4-97



Subject:-              No colour on French S.E.C.A.M.




Background:-           The change of IC.TDA8362N4 (Video Processor) to TDA8362N5 may cause the imtermittant
                       loss of colour when in S.E.C.A.M. mode.



Remedy:-               When replacing the TDA8362N4 with the N5 version carry out the changes below.

                       1. Delete resistor R613 Part No. ERJ6GEYJ273.
                       2. Add resistor R603 Part No. ERJ6GEYJ103.




Panasonic
Document No: QUA0012                                                                                          Issue: 2
