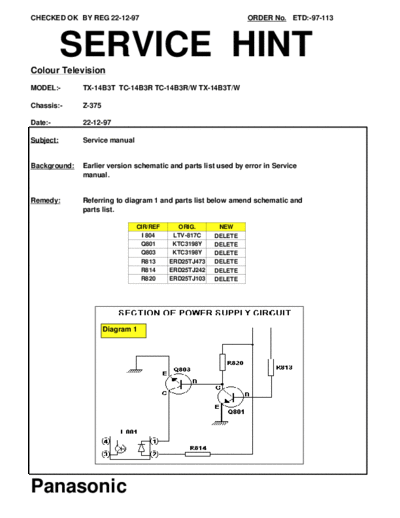

Image preview - the first page of the document



>> Download 97113 documenatation <<

Text preview - extract from the document

CHECKED OK BY REG 22-12-97                                      ORDER No. ETD:-97-113




           SERVICE HINT
Colour Television
MODEL:-       TX-14B3T TC-14B3R TC-14B3R/W TX-14B3T/W

Chassis:-     Z-375

Date:-        22-12-97

Subject:      Service manual


Background:   Earlier version schematic and parts list used by error in Service
              manual.


Remedy:       Referring to diagram 1 and parts list below amend schematic and
              parts list.

                               CIR/REF      ORIG.      NEW
                                 I 804    LTV-817C    DELETE
                                Q801      KTC3198Y    DELETE
                                Q803      KTC3198Y    DELETE
                                R813     ERD25TJ473   DELETE
                                R814     ERD25TJ242   DELETE
                                R820     ERD25TJ103   DELETE




                      Diagram 1




Panasonic
Document No: QUA0012   Issue: 2
