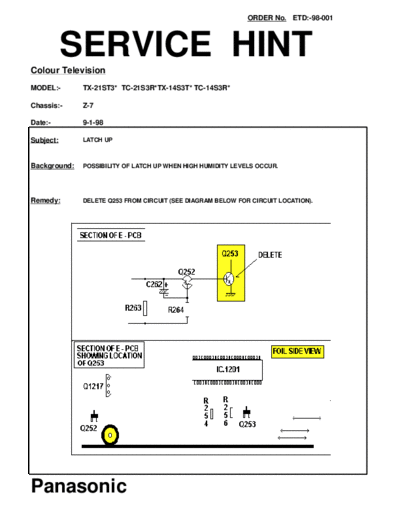

                                                             ORDER No. ETD:-98-001




           SERVICE HINT
Colour Television
MODEL:-       TX-21ST3* TC-21S3R*TX-14S3T* TC-14S3R*

Chassis:-     Z-7

Date:-        9-1-98

Subject:      LATCH UP



Background:   POSSIBILITY OF LATCH UP WHEN HIGH HUMIDITY LEVELS OCCUR.




Remedy:       DELETE Q253 FROM CIRCUIT (SEE DIAGRAM BELOW FOR CIRCUIT LOCATION).




Panasonic
Document No: QUA0012   Issue: 2
