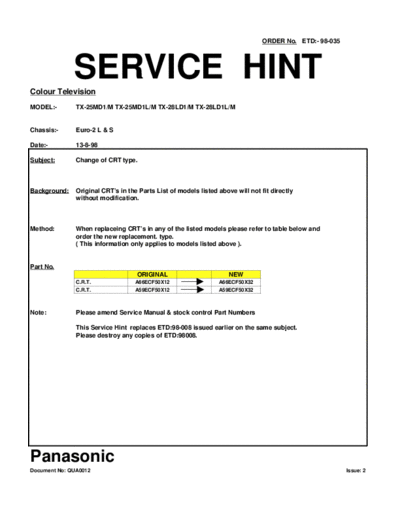

                                                                                 ORDER No. ETD:- 98-035




              SERVICE HINT
Colour Television
MODEL:-        TX-25MD1/M TX-25MD1L/M TX-28LD1/M TX-28LD1L/M


Chassis:-      Euro-2 L & S

Date:-         13-8-98

Subject:       Change of CRT type.



Background:    Original CRT's in the Parts List of models listed above will not fit directly
               without modification.



Method:        When replaceing CRT's in any of the listed models please refer to table below and
               order the new replacement. type.
               ( This information only applies to models listed above ).


Part No.
                                    ORIGINAL                         NEW
               C.R.T.              A66ECF50X12                   A66ECF50X32
               C.R.T.              A59ECF50X12                   A59ECF50X32



Note:          Please amend Service Manual & stock control Part Numbers

               This Service Hint replaces ETD:98-008 issued earlier on the same subject.
               Please destroy any copies of ETD:98008.
