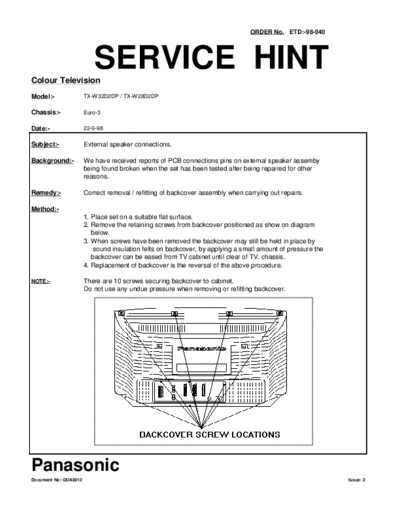

Image preview - the first page of the document



>> Download 98040 documenatation <<

Text preview - extract from the document

                                                                                ORDER No. ETD:-98-040




Colour Television
                          SERVICE HINT
Model:-                TX-W32D2DP / TX-W28D2DP


Chassis:-              Euro-3


Date:-                 22-9-98

Subject:-              External speaker connections.

Background:-           We have received reports of PCB connections pins on external speaker assemby
                       being found broken when the set has been tested after being repaired for other
                       reasons.

Remedy:-               Correct removal / refitting of backcover assembly when carrying out repairs.

Method:-
                       1. Place set on a suitable flat surface.
                       2. Remove the retaining screws from backcover positioned as show on diagram
                          below.
                       3. When screws have been removed the backcover may still be held in place by
                           sound insulation felts on backcover, by applying a small amount of pressure the
                          backcover can be eased from TV cabinet until clear of TV. chassis.
                       4. Replacement of backcover is the reversal of the above procedure.

NOTE:-                 There are 10 screws securing backcover to cabinet.
                       Do not use any undue pressure when removing or refitting backcover.




Panasonic
Document No: QUA0012                                                                                         Issue: 2
