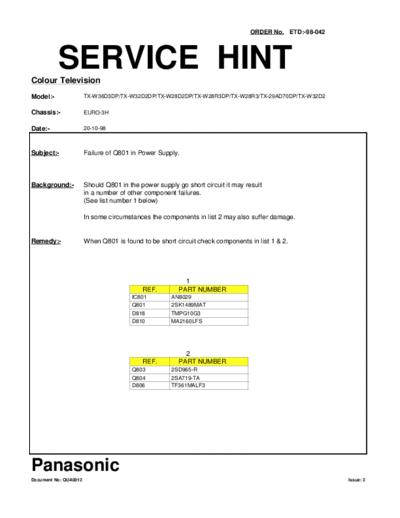

Image preview - the first page of the document



>> Download 98042 documenatation <<

Text preview - extract from the document

                                                                                 ORDER No. ETD:-98-042




          SERVICE HINT
Colour Television
Model:-                TX-W36D3DP/TX-W32D2DP/TX-W28D2DP/TX-W28R3DP/TX-W28R3/TX-29AD70DP/TX-W32D2


Chassis:-              EURO-3H


Date:-                 20-10-98



Subject:-              Failure of Q801 in Power Supply.



Background:-           Should Q801 in the power supply go short circuit it may result
                       in a number of other component failures.
                       (See list number 1 below)

                       In some circumstances the components in list 2 may also suffer damage.


Remedy:-               When Q801 is found to be short circuit check components in list 1 & 2.




                                                          1
                                           REF.         PART NUMBER
                                       IC801         AN8029
                                       Q801          2SK1489MAT
                                       D818          TMPG10G3
                                       D810          MA2160LFS




                                                          2
                                           REF.         PART NUMBER
                                       Q803          2SD965-R
                                       Q804          2SA719-TA
                                       D806          TF361MALF3




Panasonic
Document No: QUA0012                                                                                     Issue: 2
