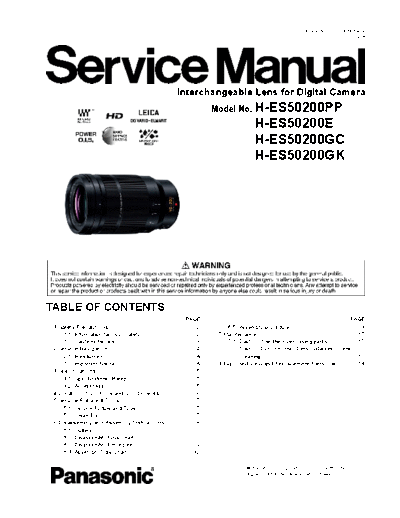

Image preview - the first page of the document



>> Download dsc1805014ce documenatation <<

Text preview - extract from the document

                                                                                                                      ORDER NO.DSC1805014CE
                                                                                                                                        B26




                                                              Interchangeable Lens for Digital Camera
                                                                             Model No. H-ES50200PP
                                                                                               H-ES50200E
                                                                                               H-ES50200GC
                                                                                               H-ES50200GK




TABLE OF CONTENTS
                                                                   PAGE                                                                        PAGE
 1 Safety Precautions----------------------------------------------- 2           6.5. Assembly procedure ------------------------------------ 13
    1.1. Information for Your Safety------------------------------ 2          7 Maintenance ------------------------------------------------------ 17
    1.2. Cautions for use ------------------------------------------- 3          7.1. Dust / Dirt on the outer casing part(s)--------------- 17
 2 Service Navigation ----------------------------------------------- 4          7.2. Dust / Dirt on the Lens Glasses (Lens
    2.1. Introduction-------------------------------------------------- 4             Cleaning) --------------------------------------------------- 17
    2.2. Important Notice ------------------------------------------- 4       8 Exploded View and Replacement Parts List ----------- 18
 3 Specifications ----------------------------------------------------- 5
    3.1. Specifications (Rated) ------------------------------------ 5
    3.2. Accessories ------------------------------------------------- 5
 4 Location of Controls and Components ------------------- 6
 5 Service Fixture & Tools----------------------------------------- 7
    5.1. Service Fixture and Tools-------------------------------- 7
    5.2. Clean Box --------------------------------------------------- 7
 6 Disassembly and Assembly Instructions ---------------- 8
    6.1. Outline-------------------------------------------------------- 8
    6.2. Disassembly Flow Chart --------------------------------- 8
    6.3. Disassembly Procedure---------------------------------- 9
    6.4. Assembly Flow Chart ------------------------------------12
