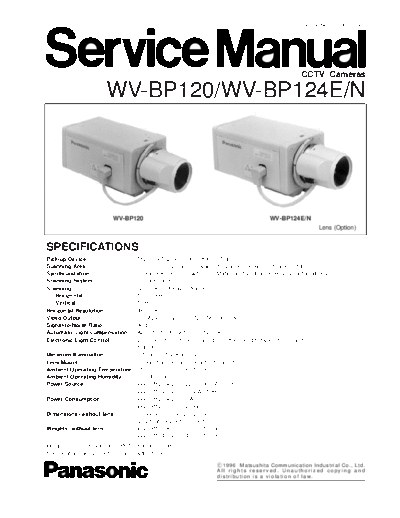

Image preview - the first page of the document



>> Download Abp120e documenatation <<

Text preview - extract from the document

                                                                                                 ORDER NO. AVS9609188C8




                                                                                                 CCTV Cameras

                        WV-BP120/WV-BP124E/N




                           WV-BP120                                                  WV-BP124E/N
                                                                                                        Lens (Option)


SPECIFICATIONS
Pick-up Device:                512 (H) x 582 (V) pixels. Interline Transfer CCD
Scanning Area:                 4.8 (H) x 3.6 (V) mm (Equivalent to scanning area of 1/3" pick-up tube)
Synchronization:               Line-locked mode or switchable Multiplexed Vertical Drive (VD2) automatically
Scanning System:               2 : 1 interlace
Scanning:                      625 lines/50 fields/25 frames
   Horizontal:                 15.625 kHz
   Vertical:                   50 Hz
Horizontal Resolution:         380 lines
Video Output:                  1.0 V[p-p] composite, 75/BNC connector
Signal-to-Noise Ratio:         46 dB
Automatic Light compensation:  ALC : 1 : 10,000 with F1.4 ALC lens
Electronic Light Control:      Equivalent to continuous variable shutter speed between 1/50 s and
                               1/80,000 s
Minimum Illumination:          0.15 lx at F1.4, AGC ON
Lens Mount:                    C-mount or special C-mount (CS-mount)
Ambient Operating Temperature: -10
