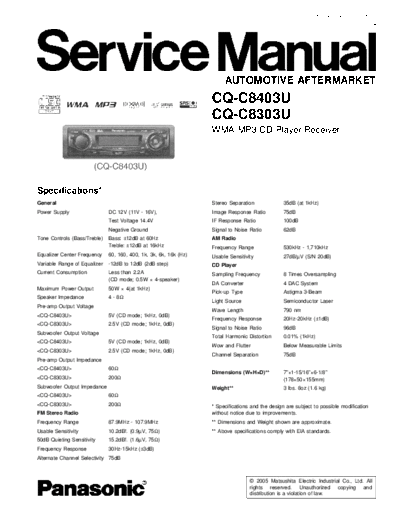

Image preview - the first page of the document
Panasonic_CQ-C8403U_CQ-C8303U


>> Download Panasonic_CQ-C8403U_CQ-C8303U documenatation <<

Text preview - extract from the document
                                                                                                           ORDER NO. ACED051226C1
                                                                                                                               C4




                                                                        AUTOMOTIVE AFTERMARKET
                                                                   CQ-C8403U
                                                                   CQ-C8303U
                                                                   WMA MP3 CD Player/Receiver




Specifications*
General                                                            Stereo Separation              35dB (at 1kHz)
Power Supply                  DC 12V (11V - 16V),                  Image Response Ratio           75dB
                              Test Voltage 14.4V                   IF Response Ratio              100dB
                              Negative Ground                      Signal to Noise Ratio          62dB
Tone Controls (Bass/Treble)   Bass:
