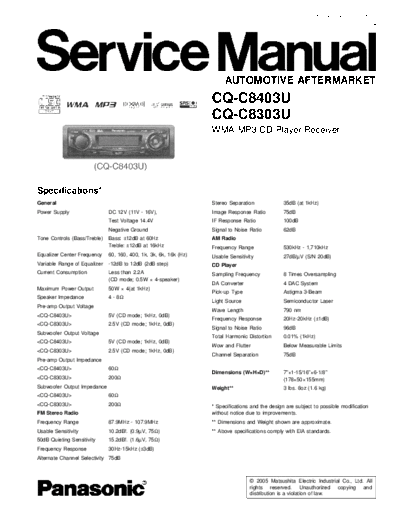

Image preview - the first page of the document
>> Download Panasonic_CQ-C8403U_CQ-C8303U documenatation <<Text preview - extract from the document ORDER NO. ACED051226C1
C4
AUTOMOTIVE AFTERMARKET
CQ-C8403U
CQ-C8303U
WMA MP3 CD Player/Receiver
Specifications*
General Stereo Separation 35dB (at 1kHz)
Power Supply DC 12V (11V - 16V), Image Response Ratio 75dB
Test Voltage 14.4V IF Response Ratio 100dB
Negative Ground Signal to Noise Ratio 62dB
Tone Controls (Bass/Treble) Bass:
