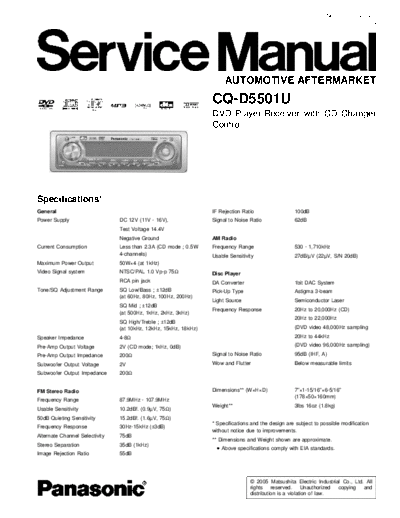

Image preview - the first page of the document
>> Download Panasonic_CQ-D5501U documenatation <<Text preview - extract from the document ORDER NO. ACED050316C1
C9
AUTOMOTIVE AFTERMARKET
CQ-D5501U
DVD Player/Receiver with CD Changer
Control
Specifications*
General IF Rejection Ratio 100dB
Power Supply DC 12V (11V - 16V), Signal to Noise Ratio 62dB
Test Voltage 14.4V
Negative Ground AM Radio
Current Consumption Less than 2.3A (CD mode ; 0.5W Frequency Range 530 - 1,710kHz
4-channels) Usable Sensitivity 27dB/
