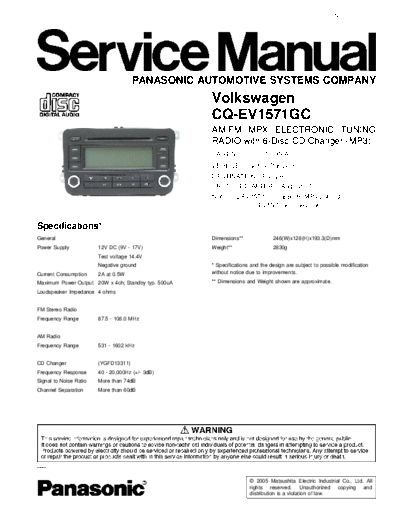

Image preview - the first page of the document
>> Download panasonic_cq_ev1571gc documenatation <<
Text preview - extract from the document
ORDER No. AED0501035
PANASONIC AUTOMOTIVE SYSTEMS COMPANY
Volkswagen
CQ-EV1571GC
AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer (MP3)
PART No. C30 035 195 A
VEHICLE : Golf 5, Passat 6
DESTINATION : Europe
PRODUCED AFTER : Aug., 2005
Note: CQ-EV1571GC supports MP3 but CQ-
EV1570GC does not.
Specifications*
General Dimensions** 246(W)x128(H)x193.3(D)mm
Power Supply 12V DC (9V - 17V) Weight** 2830g
Test voltage 14.4V
Negative ground * Specifications and the design are subject to possible modification
Current Consumption 2A at 0.5W without notice due to improvements.
Maximum Power Output 20W x 4ch; Standby typ. 500uA ** Dimensions and Weight shown are approximate.
Loudspeaker Impedance 4 ohms
FM Stereo Radio
Frequency Range 87.5 - 108.0 MHz
AM Radio
Frequency Range 531 - 1602 kHz
CD Changer (YGFD13311)
Frequency Response 40 - 20,000Hz (+/- 3dB)
Signal to Noise Ratio More than 74dB
Channel Separation More than 60dB
