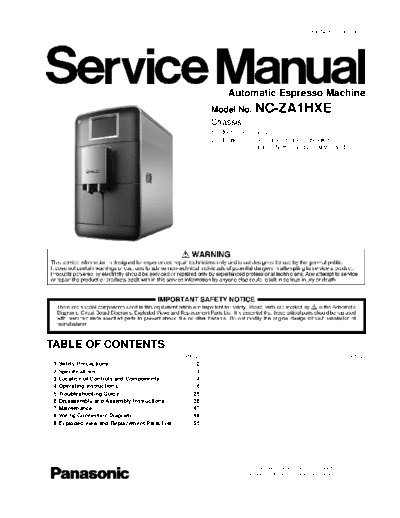

Image preview - the first page of the document
>> Download sm-nc_za1hxe-2013-10-02 documenatation <<
Text preview - extract from the document
OrderNo.PTW1308508CE
Automatic Espresso Machine
Model No. NC-ZA1HXE
Chassis
Product Color Grey
Destination Germany / France / Belgium /
Spain / Netherlands / Switzerland
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 4
4 Operating Instructions------------------------------------------ 6
5 Troubleshooting Guide ----------------------------------------25
6 Disassembly and Assembly Instructions ---------------28
7 Maintenance-------------------------------------------------------47
8 Wiring Connection Diagram ---------------------------------48
9 Exploded View and Replacement Parts List -----------55
