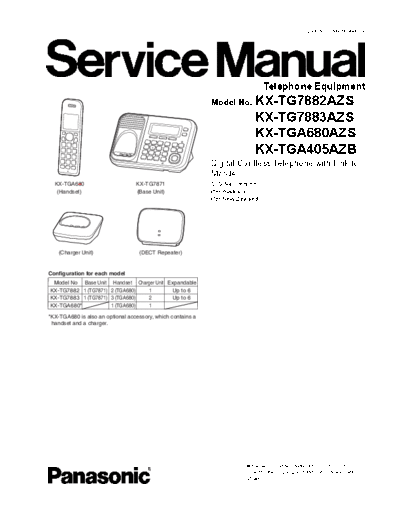

Image preview - the first page of the document



>> Download Panasonic_KX-TG7882AZS_KX-TG7883AZS_KX-TGA680AZS_KX-TGA405AZB_[X] documenatation <<

Text preview - extract from the document

                                                                                                  ORDER NO. KM41604990CE




                                                                                 Telephone Equipment
                                                             Model No. KX-TG7882AZS
                                                                            KX-TG7883AZS
                                                                            KX-TGA680AZS
                                                                            KX-TGA405AZB
                                                             Digital Cordless Telephone with Link to
                                                             Mobile
  KX-TGA680                       KX-TG7871                  S: Silver Version
   (Handset)                      (Base Unit)                (for Australia)
                                                             (for New Zealand)




    (Charger Unit)                 (DECT Repeater)


Configuration for each model
 Model No Base Unit Handset Charger Unit Expandable
KX-TG7882 1 (TG7871) 2 (TGA680)  1         Up to 6
KX-TG7883 1 (TG7871) 3 (TGA680)  2         Up to 6
KX-TGA680*           1 (TGA680)  1

*KX-TGA680 is also an optional accessory, which contains a
 handset and a charger.
