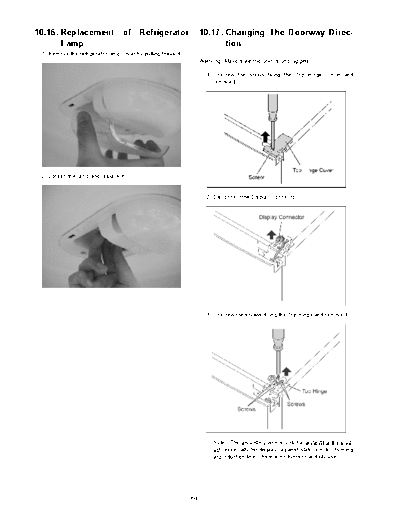

Image preview - the first page of the document



>> Download NR-B32SX1-SW1_door documenatation <<

Text preview - extract from the document

10.16. Replacement               of     Refrigerator              10.17. Changing The Doorway Direc-
       Lamp                                                              tion
 1. Remove the refrigerator lamp cover by pulling forward.
                                                                  Warning: Make sure the unit is unplugged.

                                                                    1. Unscrew the screw fixing the Top Hinge Cover and
                                                                       remove it.




 2. Loosen the lamp and replace it.


                                                                    2. Disconnect the Display Connector.




                                                                    3. Unscrew the screws fixing the Top Hinge and remove it.




                                                                       Note : The grounding wire is only for protecting the prod-
                                                                       uct (especially for display) against static electric forming
                                                                       at production line. There is no function at daily use.




                                                             64
4. Remove the Refrigerator Door.                             7. Lie down the appliance to the back. (min: 300mm)
                                                                CAUTION:Do not damage the outer condenser.




5. Unscrew the two screws which are fixing the Middle        8. Unscrew the Stationary Foot under the Bottom Hinge.
   Hinge and remove the Washer.




6. Remove the Freezer Door.
                                                             9. Unscrew the Bottom Hinge fixing screws and remove it.




                                                        65
10. Unscrew the Stationary Foot on the left side.              13. Screw the Stationary Foot for the right side.




                                                               14. Insert the Flat screwdriver into the gap between the
                                                                   Spacer and the Bottom Hinge. Then pry off the Spacer.
11. Unscrew the side panel fixing screw.
                                                                   Unscrew the pin of hinge, rotate the Bottom Hinge 180
