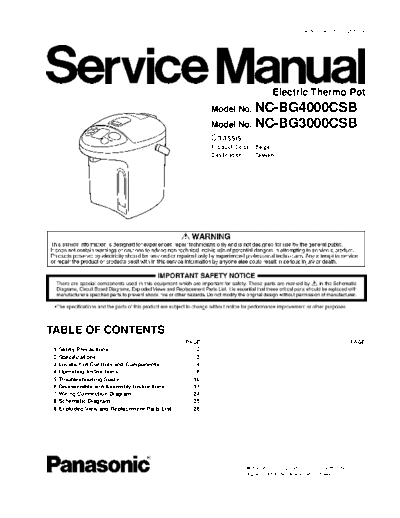

Image preview - the first page of the document
>> Download Panasonic_NC-BG4000CSB_NC-BG3000CSB_Electric_Thermo_Pot documenatation <<Text preview - extract from the document Order Number KAD1512017CE
Electric Thermo Pot
Model No. NC-BG4000CSB
Model No. NC-BG3000CSB
Chassis
Product Color Beige
Destination Taiwan
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 4
4 Operating Instructions------------------------------------------ 6
5 Troubleshooting Guide ----------------------------------------10
6 Disassembly and Assembly Instructions ---------------17
7 Wiring Connection Diagram ---------------------------------24
8 Schematic Diagram ---------------------------------------------25
9 Exploded View and Replacement Parts List -----------26
