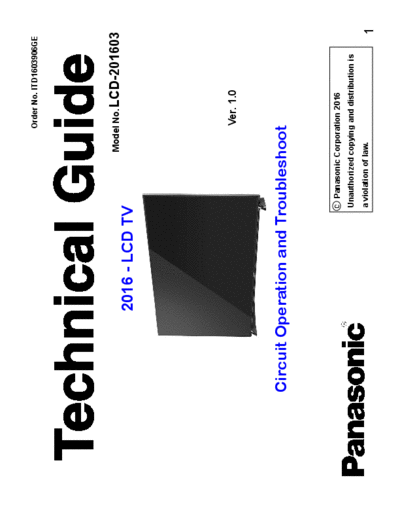

Image preview - the first page of the document
>> Download 2016lcd_technical_guide_circuit25mar2016 documenatation <<
Text preview - extract from the document
Order No. ITD1603906GE
Model No. LCD-201603
2016 - LCD TV
Ver. 1.0
Circuit Operation and Troubleshoot
c Panasonic Corporation 2016
Unauthorized copying and distribution is
a violation of law.
1
Revision History
Version Issued/Revised Revised content
date
Ver. 1.0 25th. Mar. 2016 First version
2
INDEX
1.Board Layout
2.Video Signal Processing
3.Power Supply
3-1. Power Board Structure
3-2. Stand by / Start up Operation
4.SOS Protection Circuit and Troubleshooting (except 1 time blink)
5.Difference of LED Drive Circuit (Troubleshooting for 1 time blink)
3
1. Board Layout
4
Board Layout -1 ( DX*** series )
T*-**DX900 T*-65DX***, TH/TC-55DX***
G P PB A G P PB A
K K
WiFi
WiFi
BT
BT
K K
T*-40DX*** T*-49/50/58DX***, TX-55DX***
LDP
G
P A G
P A
K K
WiFi
WiFi
BT
K K
GK board : depend on the model BT : depend on the model and region 5
Board Layout -2 ( D/DS*** series )
T*-49/43DS*** T*-65/55DS***
T*-49/43D***
LD LDP
G P A G P A
K K
WiFi
WiFi
BT
BT
K K
T*-50/40/32DS*** TH-32D450/440/400D
T*-40/32D*** (except 32inch India model)
A
P (P + A + GK)
G A
K
WiFi
BT
K K
WiFi : only DS*** series BT : only TC-**DS6**, TX-**DS630 series GK board : depend on the model 6
Main Board Structure
D4** DS4**/5**/6** DX6**/7**/8** DX900
(4K) (4K)
24inch --- A+P --- ---
32inch A+P / A+P --- ---
(India : 1 Board)
40inch A+P A+P A+P+LDP ---
43inch A+P+LD A+P+LD --- ---
49inch A+P+LD A+P+LD A+P ---
50inch --- A+P A+P ---
55inch --- A+P+LDP A+P , ---
A+P+PB: (only
TH-55DX640*,
TC-55DX700*)
58inch --- --- A+P A+P+PB
65inch --- A+P+LDP A+P+PB A+P+PB
Except K, GK boards 7
Board Layout -1
( 32D410/400 )
A+P
P3
A02
P
A15 A
A10
A12
AC input
Speaker Speaker
K10
K
Board Name Function
A-Board Main Board
P-Board Power supply, Backlight Drive, Power key, Control key
K-Board Remote Receiver, LED
8
Board Layout -2
( 49DS630 )
A+P+LD/LDP
LD2
P5 A02
P4 LD1
LD A15 A10
A
P
GK
A19
P2
A12
WiFi Module
AC input
Speaker Speaker
(T-CON)
Not repairable, K10 K
One of the panel module
Board Name Function Board Name Function
A-Board Main Board GK-Board Key
P-Board Power supply for Signal Process K-Board Remote Receiver, Power LED
LD-Board Power supply for Backlight Drive
9
Board Layout -3
( 65DX900 )
A+P+PB
PB1 A08
A02
PB6 P6 A15
P2
GK
PB5
PB P A16
A17 A
A12
PB2 PB3 P3
A10
AC input
Speaker Speaker Bluetooth Module
WiFi Module
(T-CON)
Not repairable,
One of the panel module K10 K
Board Name Function Board Name Function
A-Board Main Board GK-Board Key
P-Board Power supply for Signal Process K-Board Remote Receiver, Power LED
PB-Board Power supply for Backlight Drive
10
2. Video Signal Processing
11
Video/Audio Signal Process - 1
D5** / D4** series
OPT_out
A
USB1
Antenna TU670* IC8000
IC68**
terminal (MTK5561)
TUNER De-Modulation
Resize
IP conv.
AV
OSD
Component
LVDS Data
to LCD Panel
HDMI1/2
The input terminals are different by the models or countries.
12
Video/Audio Signal Process - 2
DS5** / DS6** series
OPT_out (*)Headphone
WiFi
IC8601 A
(*1)Bluetooth
(USB HUB)
USB1/2
IC8000
Antenna TU670* (Peaks LD6/
IC68**
terminal TUNER De-Modulation sLD8A)
AV
Resize
Component IP conv.
SCART OSD LVDS Data
(only Europe)
IC8650 to LCD Panel
LAN
(LAN)
CI-slot
(only Europe)
HDMI1/2/3
(*1) Bluetooth : only TC-**DS6**(except Canada), TX-**DS630*
The input terminals are different by the models or countries. 13
Video/Audio Signal Process - 3
DX6** / DX7** / DX8** series OPT_out (*)Headphone
WiFi
(*1)Bluetooth IC8601
USB2 (USB HUB) A
USB1
USB3.0
IC8000
Antenna TU670* IC68** (MT5810) IC9000 to LCD Panel
terminal
TUNER De-Modulation (Mstar/NTK)
Resize
IP conv. Frame Rate
AV
OSD Convert
Component 2D->3D
( V by One format )
LAN
CI-slot
(only Europe)
HDMI1/2/3/(4)
(except below
models
HDMI1/2/3/(4)
IC4500
(TX-DX8** HDMI
TH-DX640 SW
TC-DX700C)
(*1) Bluetooth : only DX9**/7** (except TC-**DX700C)
The input terminals are different by the models or countries. 14
Video/Audio Signal Process - 4
DX900 series
OPT_out (*)Headphone
WiFi A
Bluetooth IC8705
USB2 (USB HUB)
USB1
USB3(3.0)
IC8000
to LCD
SD card (MT5810)
(only TC/TX IC9000 Panel
IC4300 (NTK)
IC68** Resize (GCEX2)
Antenna TU670*
De-Modulation IP conv.
terminal TUNER Frame Rate
OSD HDR Convert
2D->3D Hexa-
Component chroma
( V by One format )
LAN
CI-slot
(only Europe)
IC4500
HDMI1/2/3/4 HDMI
SW
(*) The input terminals are different by the models or countries.
15
Video/Audio Signal Process - 5
The main function of the A board is to select and process one of the incoming video signals.
IC8601 is just switches of USB signals. The built in WiFi module is connected by USB type
terminal.
Video input, Component Video Input, HDMI input and the composite video output of the tuner
are all connected to IC8000 for selection. The video input signal can be two formats: Video, or Y,
Pb, Pr. A comb filter inside IC8000 converts the composite video signal of the main picture to Y
and C (luminance and chrominance) signals. The signal is then converted to RGB. At the
completion of this process, the format of the composite signal is now the same as a digital 1080i
component signal. If the incoming video is in the 480p, 720p, 1080i, and 1080p format, the Y, Pb,
and Pr signals undergo A/D (analog to digital) conversion. Finally all picture signals are
converted to 1080p.
Digital television reception of the tuner is output in the form of an IF (Intermediate Frequency)
signal. The transport stream from the tuner enters the VSB I/F (Interface) section of IC8000 where
the video signal is extracted and converted to YUV data. The output is provided to the Video Input
I/F for selection. The JPEG data of the SD card enters the JPEG I/F section of IC8000 for
conversion into YUV data and output to the Video Input I/F circuit. The video input interface
outputs the selected picture data to the video process circuit.
This Video Process section of the IC performs all picture control operations such as brightness,
contrast, color, tint, etc. On Screen Display data such as channel numbers, Digital TV closed
caption, and picture adjustments are mixed with the video data. If in 3D mode, it converts to the
right and left pictures. After the process, LVDS (Low Voltage Differential Signaling) is output to
LCD panel module. # IC9000 is the frame rate converting IC for high speed LCD panel. IC4300
adjust the brightness for HDR feature.
16
Troubleshoot for Video Signal Problem
:When abnormal picture is displayed, troubleshoot by the test pattern in LCD module.
If the picture is no problem, A board must be defective.
If the picture is also abnormal, LCD panel module must be defective. Just in
case, confirm the flat cable connection between A board and T-CON board.
How to enter :
While pressing "volume(-)" button of the TV unit, Some patterns are
press "option/yellow" button of the remote control 3 times within 2 seconds. automatically changed.
How to exit : The patterns are depend
on the LCD panel.
Switch off the TV unit
#)The test pattern is created by the circuit in LCD Panel Module(T-CON board).
A LCD Panel Module
IC8000
T-CON LCD Panel
(Peaks/MTK )
Test
Resize Pattern
IP conv.
17
Troubleshoot for Video/Audio Signal Problem
: Customers also can check the picture and sound by internal data.
If the picture and sound is no problem, the reason of trouble is mostly not a TV.
How to display :
Menu HELP TV Self Test
#)The test pattern and test sound are created by the main IC on the A board.
TV Self Test
(OK)
1) During this indication
"Self Check of Service Mode"
is working at the background.
2) If NG, indication is shown. Yes No
# A board defective
3) If All OK, it shifts to picture
and sound test. 1.Antenna level low TV unit defective.
2.Connection mistake (A board, Panel or
3.Input devices NG Speaker)
*) D400/410 series do not support. 4.Input select mistake
A LCD Panel Module
IC8000
T-CON LCD Panel
(Peaks/MTK )
Test
Pattern
Resize
IP conv.
18
3. Power Supply
3-1. Power Board Structure
19
Power Board Structure 1 ( P Board only )
VLED
Anode
Power
IC
PFC Cathode
LED
IC Drive (Backlight)
IC
HO
Power
PWM
IC LO
BL-ON A
16V BL-ON
16V
REG
P STB5V
20
Power Board Structure 2 ( P+LDP/LD board )
< P + LDP/LD >
LDP/LD
VLED
Anode
Power
IC
PFC Cathode
LED
IC Drive (Backlight)
IC
HO
Power
IC LO
PWM
BL-ON
A
16V BL-ON
16V
REG
P STB5V
21
Power Board Structure 3 ( P+PB board )
< P + PB >
only 65DX7**/8** VLED1 Anode
Power
IC
(TNPA6249)
Cathode
LED
Drive
IC
HO VLED2 Anode
Power
Power
IC LO IC
Cathode
PB LED
Drive
IC
(Backlight)
PWM
BL-ON A
16V
PFC 16V
IC
HO
Power REG
IC LO STB5V
P (TNPA6060)
22
Power Board Structure 4 ( P+PB board )
< P + PB > only DX9**
PB
VLED1
(TNPA6200)
Anode
HO
Cathode
Power LED
IC LO Drive
IC
(Backlight)
VLED2
PFC
IC
Sync/control/etc
HO
Power BL-ON
IC LO
A
16V
PFC 16V
IC
HO
Power
REG
IC LO
P (TNPA6199) STB5V
23
3-2. Stand by / Start up Operation
The explanation is for the case of "Power Board Structure 2 (P+LD/LDP board,
43/49DS630 )", but "P, P+LD/LDP, P+PB" cases are basically same start up operation.
24
Voltage Distribution ( A+P+LD Boards )
Ex. 43/49DS630** series
(Each models are different pin allocation but operation is same.) LCD Module
P LD LCD Panel
P4 LD1 LD2
28V/32V(*) 8,9 8,9 3,7
Output VLED1,2(*) T-CON
LED
6 6
Drive board
1,5
3 3
PNL12V
(Ex. TNPA5935** )
A19
P2 A02 1,2,3,4
BL_ON
11
10
16V 1,2,3 F15V
16V 1,3,5 12V
Output PNL12V
9
TV_SUB_ON 2
5V
3.3V
A
POWER_ON
1.5V
12 4
1.1V
STB5V 7 STB5V 11 3.3V
Output STB3.3V
GK
POWER
Switch (Ex. TNPA5916** )
(*)The DC level is different by the LCD panel. 25
Reference : Voltage Distribution ( A+P+PB Boards )
Ex. DX900** series
LCD Module
PB2
PB (TNPA6200** )
17-28 VLED2(*)
9,10 LED LCD Panel
16V
VLED(*) Drive
Output 17-28 VLED1(*)
T-CON
9,10
16V
BL_ON 5 board
16V PB1
PB6 1/3 PB3 1 PNL12V
1/3 1 A16
P6 P3 P2 A03 44 - 51
BL_ON
15
F15V
16V 1-5 16V 1-5 12V
Output PNL12V
P 11
TV_SUB_ON
11
5V
3.3V
A
POWER_ON 1.5V
12
POWER 12 1.1V
Switch
STB5V 9 5VS 9 3.3V
Output A02 STB3.3V
(TNPA6199** )
(*)The DC level is different by the LCD panel. 26
Start up Operation-1
Ex. 43/49DS630** series (Each models are different pin allocation but operation is same.)
P
Transformer P4
T7301 Q7402/05
LD1
LD
L7813/14/
LD2 LCD Module
24V/32V(*) 3,7 VLED1,2(*) Power
24V/ Q7804/01 LCD Panel
PFC Output 32V(*) For
T7202 (DC/DC) 6(light) LED
(Back T-CON
IC7201
LED 1,5 Light)
Drive board
DC/DC IC7800
3 5
IC7301
A02
PNL12V
4
P2
A19 1,2,3,4
BL_ON
11 10
16V 1,2,3
Output
16V 1,3,5
Q7403 F15V
1
DC/DC
IC7503
7
STB5V 11
STB5V
A
2
9 2
TV_SUB_ON
12 4
POWER_ON KEY3
When the TV is plugged in, the power board outputs 5V for standby voltage.
POWER
Switch When the power supply receives the TV_SUB_ON signal, it outputs 2 different voltages:
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
