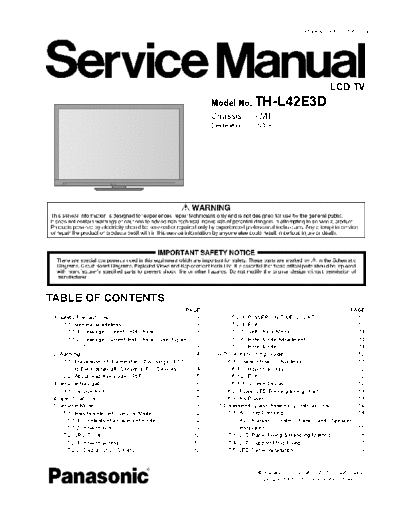

Image preview - the first page of the document
>> Download panasonic_th-l42e3d_chassis_km11 documenatation <<
Text preview - extract from the document
ORDER NO. PAVCI1105021CE
LCD TV
Model No. TH-L42E3D
Chassis: KM11
Destination: INDIA
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 5.2.3. POWER ON TIME/COUNT ----------------------- 10
1.1. General Guidelines---------------------------------------- 3 5.2.4. Exit ------------------------------------------------------ 10
1.1.1. Leakage Current Cold Check---------------------- 3 5.2.5. Self Check Mode ------------------------------------ 11
1.1.2. Leakage Current Hot Check (See Figure 5.2.6. Hotel Mode Adjustment ---------------------------- 11
1.) --------------------------------------------------------- 3 5.2.7. Hotel Mode-------------------------------------------- 11
2 Warning -------------------------------------------------------------- 4 6 Troubleshooting Guide --------------------------------------- 12
2.1. Prevention of Electrostatic Discharge (ESD) 6.1. Check of the IIC bus lines------------------------------ 12
to Electrostatically Sensitive (ES) Devices---------- 4 6.1.1. How to access --------------------------------------- 12
2.2. About lead free solder (PbF)---------------------------- 5 6.1.2. Exit ------------------------------------------------------ 12
3 Service Navigation ----------------------------------------------- 6 6.1.3. Screen display --------------------------------------- 12
3.1. Service Hint ------------------------------------------------- 6 6.2. Power LED Blinking timing chart --------------------- 13
4 Specifications ----------------------------------------------------- 7 6.3. No Power--------------------------------------------------- 13
5 Service Mode ------------------------------------------------------ 9 7 Disassembly and Assembly Instructions--------------- 14
5.1. How to enter into Service Mode ----------------------- 9 7.1. AC Cord Dressing---------------------------------------- 14
5.1.1. Contents of adjustment mode --------------------- 9 7.2. AV Bracket, Control Panel and Speaker
5.1.2. How to exit---------------------------------------------- 9 Installation ------------------------------------------------- 15
5.2. SRV-TOOL -------------------------------------------------10 7.3. LCD Panel Fixing & Handling Method -------------- 16
5.2.1. How to access ----------------------------------------10 7.4. LCD Support Mold Fixing ------------------------------ 17
5.2.2. Display of SOS History -----------------------------10 7.5. LED Panel Installation ---------------------------------- 18
