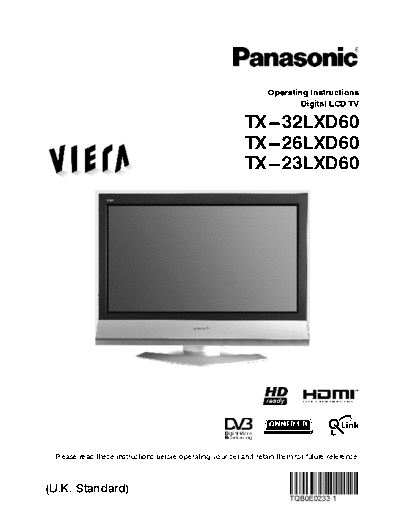

Image preview - the first page of the document
>> Download TQB0E0233 documenatation <<
Text preview - extract from the document
Operating Instructions
Digital LCD TV
TX---32LXD60
TX---26LXD60
TX---23LXD60
Please read these instructions before operating your set and retain them for future reference.
(U.K. Standard)
WELCOME
Dear Panasonic Customer,
Welcome to the Panasonic family of customers.
We hope that you have many years of enjoyment from your new digital LCD television. This is a very
advanced television; however, the Quick Start Guide will allow you to use the TV as quickly as
possible. You can then read the instructions completely and retain them for future reference.
Analogue and Digital television --- what are they?
Analogue transmission is the system that has been used for many years for broadcasting television
programmes. With continuous improvements in technology it is now possible to transmit
programmes in a digital format, allowing clearer pictures, more stations and other services to be
displayed on screen. Digital television is provided in three different ways; it can be sent along a cable
connection direct to your house, broadcast from a satellite, or broadcast using traditional land based
(terrestrial) transmitters. The first two options require you to have an extra `set top box' decoder and in
the case of satellite, a receiving dish mounted outdoors. While allowing you to receive traditional
analogue transmissions in the usual way, this television can also receive terrestrial digital services
using an integrated DVB (Digital Video Broadcasting) decoder. This allows you to enjoy the new era
of digital terrestrial television, including future interactive services, without the need for a `set top box'
or satellite dish --- your current roof or loft mounted antenna is all you need.
DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
CONTENTS
Warnings and Precautions . . . . . . . . . . . . . 3 DVB Setup Menu Overview (DVB) Mode . . . 30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Timer Programming Menu (DVB Mode) . . . 31
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Profile Edit Menu (DVB mode) . . . . . . . . . . . . 33
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Child Lock Menu (DVB mode) . . . . . . . . . . . . 34
Basic Controls . . . . . . . . . . . . . . . . . . . . . . . . 6 DVB Tuning Menu (DVB mode) . . . . . . . . . . . 35
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . 7 DVB System Setup (DVB mode) . . . . . . . . . . 36
Analogue Programme Guide . . . . . . . . . . 11 Common Interface Module . . . . . . . . . . . . . . . 37
DVB Programme Guide (EPG) . . . . . . . . . 12 System Update Menu (DVB mode) . . . . . . . . 38
Aspect Controls . . . . . . . . . . . . . . . . . . . . . . 14 Q -- Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Using On Screen Displays . . . . . . . . . . . . 17 VCR/DVD/R Operation . . . . . . . . . . . . . . . . . . . 40
Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . 18 Teletext Operation . . . . . . . . . . . . . . . . . . . . . . . 41
Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . 19 Connections (AV) . . . . . . . . . . . . . . . . . . . . . . . 44
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 20
HDMI Functions . . . . . . . . . . . . . . . . . . . . . . . . . 46
Tuning Menu - (Analogue mode) . . . . . .
- 21
Connections (HDMI) . . . . . . . . . . . . . . . . . . . . . 47
Tuning Menu - Programme Edit . . . . . . .
- 22
Tuning Menu-- Auto setup Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 49
(Analogue Mode). . . . . . . . . . . . . . . . . . . . . 25 DVB Troubleshooting . . . . . . . . . . . . . . . . . . . . 50
Tuning Menu-- Manual tuning Frequently asked Questions . . . . . . . . . . . . . 51
(Analogue mode) . . . . . . . . . . . . . . . . . . . . . 26
On Screen Messages . . . . . . . . . . . . . . . . . . . . 52
Setup Menu Owner I.D. . . . . . . . . . . . . . . . 28
Setup Menu Shipping Condition . . . . . . . 29 For your guidance . . . . . . . . . . . . . . . . . . . . . . 54
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
2
WARNINGS AND PRECAUTIONS
D This TV set is designed to operate on 220--240V, 50Hz A.C. D Adequate ventilation is essential to prevent failure of
D To prevent damage which might result in electric shock or fire, electrical components, we recommend that a gap of at
do not expose this LCD television to rain or excessive least 10 cm is left all around this LCD television even
moisture. when it is placed inside a cabinet or between shelves.
This TV must not be exposed to dripping or splashing water
D When ambient temperature is cool, the picture may take
and objects filled with liquid, such as vases, must not be
a short time to reach normal brightness, but this is not a
placed on top of or above the TV.
malfunction. (After brief moment, the picture will have
D WARNING : HIGH VOLTAGE !!!
normal brightness.)
Do not remove the rear cover as live parts are accessible
D Ventilation should not be impleded by covering the
when it is removed. There are no user serviceable parts
ventilation openings with items such as newspapers,
inside.
tablecloths and curtains.
D Avoid exposing the TV set to direct sunlight and other
D TV GAMES / HOME COMPUTERS
sources of heat e.g. lit candles.
Extended use of TV games or home computers with any
D Ensure that the mains plug is easily accessible.
television set can cause a permanent `shadow' on the
D Never push objects of any kind into this LCD TV
screen. This type of irreversible LCD panel damage, can be
through cabinet slots as they may touch dangerous
limited by observing the following points:
voltage points or short out parts that could result in a
D Reduce the brightness and contrast levels to a minimum
fire or electric shock.
viewing level.
D To prevent injury, this apparatus must be securely attached
D Do not operate the television set for a continuous period of
to the floor/wall in accordance with the installation
time while using TV games or home computers.
instructions (mounting bracket is not supplied).
D Do not allow a still picture to be displayed for an extended
D The On/Off switch on this model does not fully disconnect
period, as this can cause a permanent after ---image to
the TV from the mains supply. Remove the mains plug from
remain on the LCD TV screen.
the wall socket when the TV set is not used for a prolonged
D Examples of still pictures include logos, video games,
period of time.
computer images, teletext and images displayed in 4:3
D CABINET AND LCD PANEL CARE
mode.
Remove the mains plug from the wall socket. The cabinet
D This type of LCD panel damage is not an operating defect,
and LCD panel can be cleaned with a soft cloth moistened
and as such is not covered by the Panasonic warranty.
with mild detergent and water. Do not use solutions
containing benzol or petroleum.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY
This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the
fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.
ASA
Check for the ASTA mark or the BSI mark on the body of the fuse.
Example 1
If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you
lose the fuse cover the plug must not be used until a replacement cover is obtained. Replacement fuse
covers can be purchased through your local Panasonic dealer.
The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a
non- -filtered plug this television will no longer meet the European standards for Electromagnetic
Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate
adapter should be used.
Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut- -off plug disposed of
safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.
If a new plug is to be fitted please observe the wiring code as shown below.If in any doubt please consult a
qualified electrician. Example 2
How to replace the fuse (for plug type shown in example 1) :
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the
mains plug (see example 1).
How to replace the fuse (for plug type shown in example 2) :
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse,
then press the fuse cover down securely (see example 2).
IMPORTANT :-- The wires in the mains lead of this appliance are coloured in accordance with the following code :--
BLUE : NEUTRAL BROWN : LIVE
As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug,
proceed as follows :--
1. The BLUE wire must be connected to the terminal marked `N' or coloured black.
2. The BROWN wire must be connected to the terminal marked `L' or coloured red.
IMPORTANT NOTE : Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug,
marked with the letter `E' or the earth symbol.
3
ACCESSORIES
Check that you have the accessories and items shown n
Operating Instruction book Customer Survey 1 Year Guarantee Registration
Clamper
(TX---26LXD60,
TX---32LXD60 only)
Remote Control Transmitter
(EUR 7651050A) Pan European Guarantee Card
Batteries for the Remote Control
Transmitter.(2 x R6 (UM3) size)
Remote control batteries
1 2
Pull and hold the hook, then open
the battery cover Insert batteries -- note correct polarity (+ and --)
3
D Make sure that the batteries are fitted the correct way
round.
D Do not mix old batteries with new batteries. Remove old,
exhausted batteries immediately.
D Do not mix different battery types, i.e. Alkaline and
Manganese or use rechargeable (Ni---Cd, Ni---MH)
Replace the cover batteries.
4
INSTALLATION
Please use the apparatus only with the stands supplied or with the appropriate wall mount kits.
Receiver Location
Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the
screen.
Use of some types of fluorescent lighting can reduce remote control transmitter range.
Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or
moisture.
Optional External Equipment
The Video/Audio connection between components can be made with shielded video and audio cables. For best
performance, Antenna cables should utilize 75 Ohm coaxial shielded wire. Cables are available from your dealer or
electronic supply store.
Before you purchase any cables, be sure you know what type of output and input connectors your various components
require. Also determine the length of cable you'll need.
For optimum quality picture
When the LCD is exposed to light from outdoors or lighting fixtures, high---contrast pictures may not be displayed clearly.
Turn off fluorescent lamps near the LCD and place in location not exposed to outdoor light.
How to use the LCD stand
Adjust the stand to your desired angle. The stand angle can be adjusted in the following directions:
TX---32/26/23LXD60 TX---23LXD60 only
20_ Right 5_ 10_
20_ Left
5_ Forward
20_ 20_ 10_ Backward
20_ Right
20_ Left
MAINTENANCE
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak
detergent solution.
D Use eyeglass cleaner to remove stubborn dirt from the LCD.
D Never use alcohol, paint thinner or benzine to clean this set.
D Before using a chemically treated cloth, carefully read the instructions that
came with the cloth.
D Do not wipe the LCD with water.
Wipe the cabinet with a soft cloth.
If the cabinet is heavily soiled, wipe with a well---wrung soft cloth dipped in kitchen cleanser
(neutral) diluted with water.
CAUTION:If water or similar substances get inside the monitor via the liquid crystal panel surface, a malfunction
may result.
5
BASIC CONTROLS: TOP PANEL AND REMOTE CONTROL
MAINS
Power On/Off
switch
TV/AV switch
(see page 44)
Increases or decreases the programme position by
STR (Normalisation store) Used to store one. When a function is already displayed, press to
tuning and other function settings increase or decrease the selected function
F (Function select)
Displays the On Screen Display functions, use repeatedly to select from the available functions -- Volume,
Contrast, Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass, Treble, Balance and Analogue Tuning
mode
Standby On / Off button Mode button
Switches TV On or Off (Standby mode) Switch between viewing DVB and
Analogue modes
Guide button
Displays the DVB and Analogue TV
Guide (See page 11---13) Direct TV Record button
Menu button (See page 39)
Press to access the Picture, Sound and Switch between viewing TV or AV
Setup menus (see page 17) input (See page 44)
Cursor buttons to make selections
Press to select a function or store a setting. and adjustments
Press after selecting programme positions
to quickly change programme.
Exit the mode
Text Hold/Picture Still button
Coloured buttons used for the selection,
navigation and operation of various functions (See page 41)
Text Index button (See page 42)
Teletext button (See page 41)
Programme / channel change buttons
STTL button (0---9) and Teletext page buttons
Text F.P button (Analogue mode)
. (see page 41)
Subtitle On/Off (DVB mode) When in standby mode switches TV On
See page 13. Status button
Direct channel access Press to display status information
Available in Analogue mode. for the current Programme position)
During normal TV viewing or when in the (See page 13)
Tuning, Programme edit or Manual Tuning
menus, press and then enter channel number
using the numeric buttons Volume up / down button
Programme up / down button N (Normalize) button
Resets all settings to their default levels
Aspect control button
(see page 14) Sound mute On / Off
VCR / DVD buttons
(See page 40)
6
QUICK START GUIDE
Connection and setting up options
1. If connecting the TV using an RF cable only, proceed to option 1.
2. If connecting the TV using SCART and RF cables, proceed to option 2.
1 Connection of TV using an RF cable only
Connect the RF cable into the TV Aerial socket TV Aerial Input Socket
2 Connection of TV and VCR (DVD/R) using SCART and RF cables
SCART connections
The VCR (DVD/R) can be connected to the TV using a SCART cable if you are using a SCART equipped VCR (DVD/R).
Use the AV2 SCART socket of the TV for a VCR (DVD/R)
RF connections
Connect the RF cable to the Aerial In socket of the VCR (DVD/R) and an RF cable from the VCR (DVD/R) Aerial out socket
to the TV Aerial socket
TV TV Aerial Input Socket
RF cable (not supplied)
AV2 Socket
SCART cabel (not supplied)
Aerial
Input
VCR / DVD/R
Socket
Aerial
Output
Socket
NOTES:
Additional equipment and cables are not supplied
Further details of Audio/Video connections can be found on pages 44---45.
7
QUICK START GUIDE
3 Connection of TV,VCR (DVD/R) and Satellite Receiver using SCART and RF cables
Scart Connections
S Fully wired SCART cables should be used for all the SCART connections.
S The AV2 SCART of the VCR (DVD/R) must be connected to the VCR socket of the Satellite Receiver
S The TV SCART socket of the Satellite Receiver must be connected to the AV1 SCART socket of the TV.
RF Connections
S Connect an RF cable to the Aerial In socket of the Satellite Receiver.
S Connect an RF cable from the RF Out socket of the Satellite Receiver to the RF In socket
S Connect an RF cable from the RF Out socket of the VCR (DVD/R) to the TV Aerial In socket
SATELLITE
RECEIVER
VCR / DVD/R
TV Aerial Input Socket
NOTES:
Additional equipment and cables are not supplied
Further details of Audio/Video connections can be found on pages 44---45.
8
QUICK START GUIDE
4
Programmes will appear immediately if your dealer has
programmed the TV for you.
If the TV has not been programmed for you then Auto setup
will begin.
The TV will search for DVB stations and Analogue stations:
TV stations will be located, sorted into order and stored ready
for use. Stations are sorted into the following order:
S DVB Stations: Are sorted by their logical channel number
sent by the broadcasters, which can be grouped into a
favourite channels list by using Profile Edit. See page 33.
SAnalogue Stations: Are sorted into channel order, but can
be changed to your preference. See page 22.
The sorted programme order depends upon the TV signal,
the broadcasting system, and reception conditions.
5
TV to VCR or DVD Recorder Download
If a "Q---Link", "NEXTVIEWLINK" or compatible recording device has been connected to a Scart ter-
minal (AV1/AV2) before starting Step 1, programme information will be downloaded to that device.
Only the analogue programme positions will be downloaded to the recording device, in the same
order as stored in the TV. See page 24.
Not all VCRs / DVD Recorders support this download of programme information, some may require to
be started manually.
Refer to the recording device's operating instruction book.
If a recording device other than those described above has been connected, then there will be no
download operation.
D If the VCR (DVD/R) has not accepted download data from the TV, you may need to select the Download
option from the VCR (DVD/R)'s menu.
D If Q---Link is not operating correctly, check it is connected to the television's AV1 or AV2 socket, the
SCART lead is a "full function" type, and the VCR (DVD/R) is compatible with Q---Link, NEXTVIEWLINK
or similar technologies. Ask your dealer for further details.
D For further information on Q---Link and connecting equipment, see pages 39 and 44.
9
QUICK START GUIDE
Owner ID
6 As an added feature, this TV has the option of adding a
security code (Owner ID) and personal details into its
memory, so that in the unfortunate event of theft it will help
the Police to trace the owner.
Using the numeric buttons, 0 to 9 on your remote control,
enter your own 4 digit Owner ID PIN NUMBER.
If a 4 digit PIN NUMBER was entered above, you will be taken
automatically to the NAME line.
If not, using the left or right cursor buttons move to the NAME line.
Change character using the up or down cursor buttons.
Select the character position using the left or right cursor buttons.
Repeat above until NAME, HOUSE NUMBER and POSTCODE are
entered.
Press the OK button to store the details.
Press the OK button again, when you are asked "Are you sure ?".
For further information on Owner I.D., see page 28.
7
Auto Setup is now complete
You are now ready to begin viewing programmes
The cursor controls provide the two basic functions: Adjust Volume Change Channel
Channels can selected directly using numeric key
pad on the remote control
Access to channels can also be gained using the
guide button. (See pages 11 and 12) GUIDE
10
ANALOGUE PROGRAMME GUIDE
The analogue programme guide shows programme list.
To view a list of the stations
that have been found, press GUIDE
the GUIDE button on the
remote control
In this guide, use the cursor
buttons to move the cursor
bar around the list
Use the programme change
button to step through the Select Page -
guide page by page Select Page +
Confirm
Exit
Pres the OK button to view
the selected programme
The Guide can be cleared
EXIT GUIDE
from the screen using
the EXIT or GUIDE button.
11
TV Guide---Electronic Programme Guide (EPG) (DVB mode)
The DVB TV Guide displays the current programmes being transmitted, and forthcoming programmes on each DVB
channel, up to about one week ahead (If broadcasters transmit the programmes information).
Press the GUIDE button.
Choose from Landscape or Portrait display style by pressing the
GUIDE button repeatedly.
Press the Red button to move the EPG listing to the previous day.
Press the Green button to move the EPG listing to next day.
Press the Yellow button to view a list of Categories.
You can create a favourites list can be customised using the Profile Edit
menu (see page 27).
Press the Blue button to view a list of Prog. type.
EPG listing can be set to display by Category or Programme Type.
For example press the Yellow button and select "Free TV",
"Radio" services or "Profile 1" by pressing the up or down cursor
buttons. Press the OK button to view a list of the selected category.
To view any of the current DVB programmes, select it with the cursor
buttons and press the OK button.
Information and Timer Programming (ex. Landscape)
You can view further information about the selected programme:
Select the programme for which you require further
information using the cursor buttons.
Press the i button to display the information.
Press the i button again to return to the list of programmes.
When you select a future programme from the EPG listing,
press the OK button to set timer programming for recording
on a Q---Link compatible recorder. See page 31. 32, 39.
Press the MENU button to return to the TV Guide.
Press the EXIT button to exit the Guide
12
TV Guide---Electronic Programme Guide (EPG) (DVB mode)
In DVB mode
Information banner will appear when changing channel, or pressing the (Information) button. The banner gives the user
information about the channel and programme currently being viewed. The banner will time out and dissapear from the
screen after a set time period, this time period can be set in the DVB System Setup menu. See page 30.
S
Press the left or right cursor button while banner is displayed to switch between Now and Next.
This switches between the information for the current Programme being shown (Now)
and the next Programme to be shown (Next).
Press the up or down cursor button to step through the banner information for all channels.
Press the OK button to view a channel. Now and Next can also be used in this mode.
While the banner appears
Press the i button to display an extended banner showing any information available on
the current selected programme.
Press the i button while in extended banner mode to return to normal banner view. EXIT
To clear the banner from the screen while in extended banner mode, press the EXIT button.
Viewing Category
Press the Blue button while in the banner to scroll through available categories.
For example
All Services : All available Services
Free TV : Free TV channels only
Pay TV: Encrypted TV channels
Radio : Radio channels only
Information: Information given on individual programmes
Profile Select one of four possible user defined profiles
Press the EXIT button to exit the banner at any time.
In Analogue mode
Pressing the i (Information) button will display the analogue channel information for a
few seconds. This will then be timed out to display just the programme position number
near the top left corner of the screen.
To remove this programme position number, press the i (Information) button again.
Subtitles On / Off (DVB mode)
In DVB mode
Press the STTL button to switch Subtitles ON.
Subtitles will appear (if available) by the language you select in
Preferred Subtitles in DVB System Setup menu. See page 30.
Press again to switch Subtitles OFF.
Digital text is not available whilst subtitles are switched on.
13
ASPECT CONTROLS
The widescreen TV will allow you to enjoy viewing the picture at its optimum size and aspect,
including widescreen `cinema format' pictures.
Press the ASPECT button repeatedly to move ASPECT
through the seven aspect options: Auto WIDE
Aspect, 16:9, 14:9, 4:3, Zoom1, Zoom2 and
Zoom3.
OR
Press the ASPECT button then use the RED
or GREEN buttons to move in either direction
through the seven aspect options.
Auto Aspect
Auto Aspect determines the best aspect ratio 'WIDE' appears in the top left of the screen, Auto Aspect switches
to use to fill your screen. It does this using a four to the appropriate 16:9 or 14:9 widescreen ratio.
step process to determine if the picture being
viewed is a widescreen picture.
If Auto Aspect detects a widescreen signal it
switches into the appropriate 16:9 or 14:9
widescreen mode. If Auto Aspect does not Auto Aspect
detect a widescreen signal then this advanced
TV set enhances the picture for optimum
viewing pleasure.
The text shown on the screen indicates how
Auto Aspect determined which ratio to use:
'WIDE' appears in the top left of the screen if a
widescreeen identification signal (WSS) is
found or a signal found through a Scart socket.
Auto Aspect switches to the appropriate 16:9 'Auto Aspect' appears in the top left of the screen,
or 14:9 widescreen ratio The best ratio is chosen and the picture expanded to fill the screen.
'Panasonic Auto' appears in the top left of the
screen if black stripes above and below the
picture are detected. Auto Aspect chooses
the best ratio and expands the picture to fill the
screen. This process can take several minutes,
depending on the darkness of the picture. Auto Aspect
You may prefer to manually select one of the
other aspect options available to view the
picture.
Notes:
D If, in Auto Aspect mode, you experience
problems with the screen display size when
playing back widescreen format recordings
from your VCR then it is possible that the
tracking control of your VCR requires
adjustment (your VCR instruction book will Press the ASPECT button, then use the RED or GREEN buttons to
contain adjustment details). move in either direction through the seven aspect options.
D The widescreen aspect ratios of different
films and programmes can vary. If these are
wider than a standard 16:9 aspect picture
then a black band may be visible at the top
and bottom of the screen.
14
ASPECT CONTROLS
16:9
16:9
16:9 will display a true 16:9
(anamorphic) picture with no
aspect distortions.
16:9
14:9
14:9
14:9 will display a 14:9 letterbox
or 4:3 picture with no aspect
distortions.
14:9
4:3
4:3
4:3 will display a 4:3 picture at
its standard 4:3 size with no
aspect distortions.
4:3
15
ASPECT CONTROLS
Zoom1
Zoom1
Zoom1 will display 16:9
letterbox or 4:3 pictures with no
aspect distortions
Zoom1
Zoom2 Zoom2
Zoom2 will display 16:9
anamorphic letterbox pictures
as a full screen display with no
aspect distortions
Zoom2
Zoom3
Zoom3
Zoom3 will display 21:9
letterbox pictures as a full
screen display with no aspect
distortions
Zoom3
16
USING THE ON SCREEN DISPLAYS
This TV has a comprehensive system of On Screen Display menus to access
adjustments and options
Menu Title Main menu
Sub--menus Picture menu
Sound menu
Setup menu
Instructions Select
Access
Exit
Return
Picture menu
Viewing mode Dynamic Indicator for options
Contrast
Brightness
Colour Selection bar
Sharpness
Colour balance Normal
P-
-NR Off
Some selections, for example, Contrast, Brightness, Colour and Sharpness will allow you to
increase or decrease their level.
Some selections, for example, Off timer, allow a choice to be made.
Some selections, for example Tuning menu, will lead to a further menu.
MENU
The MENU button is used to open the main menu and also to return to the previous
menu.
The up and down cursor buttons are used to move the cursor up and down the me-
nus.
The left and right cursor buttons are used to access menus, adjust levels or to select
from a range of options.
The OK button is used to store and confirm tuning, OSD functions and other settings
EXIT
The EXIT button is used to exit the menu system and return to the normal viewing
screen.
N (Normalise) button --- resets all settings to their default levels
Last Position Memory
Certain functions have a last position memory, i.e. the setting at the time of switch--off will be the
setting used when the receiver is switched on again.
17
PICTURE MENU
This menu allows you to make adjustments to the picture quality.
MENU
Open the Main menu Picture menu
Viewing mode Cinema
Contrast
Move to Picture menu Brightness
Colour
Sharpness
Colour balance Normal
Access Picture menu P- NR
- Off
Select
Move to your choice Change
Increase or decrease levels
Exit
Return
or set options
Press the EXIT button to EXIT Picture menu
exit the menu system Viewing mode Auto
Contrast
Brightness
Colour
Viewing mode Sharpness
The Viewing mode in the Colour balance Normal
Picture menu allows you to P- NR
- Off
select, four different screen
settings --- Dynamic, Normal, Picture menu
Cinema and Auto
Viewing mode Auto
In each Viewing mode setting, Contrast
Contrast, Brightness, Tint (in Brightness
NTSC only), Colour, and Colour
Sharpness can be adjusted Sharpness
and stored to suit your Colour balance Normal
particular viewing P- NR - Off
requirement (for example
you may require different settings for viewing sport, films, news etc.). Viewing mode offers
you up to a maximum of four separate settings.
By analysing and processing the incoming picture, all four modes feature automatic
enhancement. You can restore the factory settings for the selected profile on the selected
Contrast signal source by pressing the "N" button on the remote control.
Brightness
Colour The Contrast, Brightness, Colour, Tint (in NTSC only) and Sharpness levels can be
Sharpness adjusted to suit your own preferences and the viewing conditions.
Tint (NTSC only)
Colour balance The Colour balance setting allows you to set the overall colour tone of the picture.
Choose from Cool Normal and Warm.
P-
-NR
P--NR will automatically reduce unwanted picture noise.
18
SOUND MENU
The Sound menu will allow you to set your personal preferences for all aspects
of sound quality.
Open the Main menu MENU
Sound menu
Move to Sound menu Bass
Treble
Balance
Headphone volume
Access Sound menu NICAM Off
Mode Music
Ambience Off
Move to your choice
Select
Adjust
Increase or decrease
levels or set options Exit
Return
Press the EXIT button EXIT
to exit the menu system
Bass Bass adjustment will emphasise the lower, deeper frequencies and can be increased
or decreased.
Treble Treble adjustment will emphasise the sharper, higher frequencies and can be
increased or decreased.
Balance Balance affects the levels of sound between the left and right speakers. Adjustment
can be made so that the level from the speakers will suit your listening position.
Headphone Can be adjusted independantly of the TV speakers so that everyone can enjoy
volume listening at a level comfortable for them.
NICAM (Not available with DVB programmes).
Select On to provide stereo sound reproduction. Select Off for FM Mono sound
output. If reception deteriorates it may help to switch Nicam to Off.
Mode The sound can be improved during Music or Speech mode by selecting the
appropriate function.
Ambience Ambience provides a dynamic enhancer to simulate improved spatial effects.
Displayed during HDMI1 input mode.
HDMI1
Allows you to choose from Auto, Digital and Analogue
input Select to fit the input signal
Auto :Set in normal use
Digital HDMI cable connection
Analogue HDMI---DVI adaptor cable connection (Connecting Audio RCA inputs)
S Not available for HDMI2, HDMI1 input mode only.
S HDMI2 terminal is for digital Audio signal only.
19
SETUP MENU
The Setup menu provides access to various advanced features and also to the
Tuning menu.
MENU DVB mode
Open the Main menu
Setup menu
Q- Link
- AV1
Move to Setup menu Control with HDMI On
AV1 out Monitor
AV2 out DVB
Access Setup menu Off timer Off
Power on preference AV
DVB Setup Menu
Owner ID
Move to your choice Shipping condition
Increase or decrease levels,set
options or access further menus Select
Change
Press the EXIT button EXIT
to exit the menu system Exit
Return
Q---Link Q--Link allows you to enable AV1 or AV2 See page 39
Control with HDMI control allows for the external equipment (e.g. DVD) and television to communicate via
HDMI a digital connection Choose from Off or On.
AV1 out Offers a choice of signals to send to the AV1 Scart socket. You can choose from the current
TV (Analogue, DVB) programme position, the signal entering
AV2 / AV3 or Monitor --- the picture displayed on screen.
AV2 out Offers a choice of signals to send to the AV2 Scart socket. You can choose from the current
TV (Analogue, DVB) programme position, the signal entering
AV1 / AV3 or Monitor --- the picture displayed on screen.
Teletext (Analogue
only) The Teletext option allows you to choose between Fastext or List mode. See page 41.
Off timer Off timer will switch the TV off within a preset time which you can choose from between 0 to
90 minutes in 15 minute intervals.
Power on Set to TV to view picture from TV tuner. Set to AV to view input from external equipment
connected to a Scart socket e.g. satellite receiver
preference Note: The external equipment must be switched on and sending a control signal for automatic
switching at power on to occur
Tuning Menu
Provides access to many other features including Programme Edit and Auto Setup
(Analogue only)
DVB Setup Menu Provides access to setup the DVB operations. (See page 30)
Owner ID Allows you to enter a security code and address information (See page 28)
Shipping Allows you to clear all tuning information and reset all control levels back to factory settings
condition (See page 29)
Volume correc. During AV mode, Volume correction is displayed.
(AV mode only) You can adjust volume level of AV mode. Volume level is memorised.
20
TUNING MENU---(Analogue mode)
The Tuning menu provides access to manual, automatic and fine tuning
menus.
MENU
Open the Main menu
5
Move to Setup menu
CH44
Access Setup menu
Tuning menu
Programme edit Access
Auto setup
Manual tuning
Move to Tuning menu
Select
Access
Access Tuning menu
Store
Exit
Return
Move to your choice
Increase or decrease levels,
set options or access
further menus
EXIT
Press the EXIT button to
exit the menu system
Programme Accessing the Programme edit menu will allow stations to be moved, added, deleted,
edit named or locked and provides access to the TV --system.
See page 22.
Auto setup The Auto setup menu allows you to automatically retune the TV. See page 25.
Manual tuning The Manual tuning menu allows individual programme positions to be tuned manually.
See page 26.
21
TUNING MENU - PROGRAMME EDIT
-
The Programme edit menu allows you to edit the programme position settings.
Open the Main menu MENU
5
CH44
Move to Setup menu
Tuning menu
Programme edit Access
Access Setup menu Auto setup
Manual tuning
Move to Tuning menu Select
Access
Store
Exit
Access Tuning menu
Return
Move to Programme edit menu
Programme edit
Access Programme edit menu Prog. Chan. Name Lock
1: CH41 XYZ Off
2: -
- Off
Make required changes 3: -
- Off
(see sections below) 4: -
- Off
5: -
- Off
Press OK button to store Changeprogramme
changes Select option
Store
If you have finished in EXIT Exit
the Programme edit menu, Return
press the EXIT button to exit Delete Add Move Download
To delete an unwanted programme Programme edit
position Prog. Chan. Name Lock
1: CH41 XYZ Off
Choose the programme 2: -
- Off
position 3: -
- Off
4: -
- Off
5: -
- Off
Press the Red button on
remote control
Press the Red button Exit
again to confirm Return
Delete Cancel
22
TUNING MENU - PROGRAMME EDIT
-
To add a programme position Programme edit
Prog. Chan. Name Lock
Choose the programme position
1: CH41 XYZ Off
where the new programme is to 2: -
- Off
be inserted 3: -
- Off
4: -
- Off
Press the Green button 5: -
- Off
Press the Green button again
to confirm
Exit
This blank programme can then be Return
tuned, named, locked and be
Delete Add Cancel
allocated your choice of TV--system
To move a programme to Programme edit
another position
Prog. Chan. Name Lock
Choose the programme position 1: CH41 XYZ Off
to be moved 2: -
- Off
3: -
- Off
4: -
- Off
Press the Yellow button on 5: -
- Off
remote control
Moveprogramme
Choose new position
Exit
Press the Yellow button again Return
to confirm Delete Confirm Cancel
To rename a programme position Programme edit
Prog. Chan. Name Lock
Choose the programme
position 1: CH41 XYZ Off
2: -
- Off
Move to the Name column 3: -
- Off
4: -
- Off
5: -
- Off
Choose the new character ABCDEFGHIJKLM-
NOPQRST
UVWXYZ+- . 0123456789
-
Move to the next character
Changecharacter
position Select option
Store
Continue until renaming is Exit
done Return
23
TUNING MENU - PROGRAMME EDIT
-
To lock a programme position to Programme edit
prevent access
Prog. Chan. Name Lock
1: CH41 XYZ Off
Choose the programme position 2: -
- Off
3: -
- Off
4: -
- Off
Move to the lock column 5: -
- Off
Lock Off / On
Choose between lock on or Select option
lock off Store
Exit
Return
To copy programme information
to a compatible VCR (DVD/R)
connected to AV1 or AV2
Move to the Prog. column
Press the Blue button on
the remote control Programme
data will now be sent to
DOWNLOAD IN PROGRESS
the VCR (DVD/R). This might take
a few seconds, depending on the PLEASE WAIT
number of stations stored. Programme : 48
Note: Remote control unavailable
If the message "Q---Link? Feature not
available"
D check Q---Link (AV1 or AV2)
D check your VCR (DVD/R)"
appears on the screen, the television is
unable to send the programme
information to the VCR (DVD/R). See
the VCR (DVD/R) handbook for further
information.
24
TUNING MENU - AUTO SETUP (Analogue mode)
-
The Auto setup menu will allow you to automatically retune the TV to your local
stations. It is useful if you move to a different region.
In Analogue mode
Open the Main menu MENU
5
CH44
Move to Setup menu
Tuning menu
Programme edit
Auto setup Access
Access Setup menu
Manual tuning
Select
Move to Tuning menu Access
Store
Exit
Access Tuning menu Return
Move to Auto setup
WARNING
Access Auto setup
All current tuning data will be
erased
Press to start Auto setup
Start Auto Setup
Exit
Notes:
Return
S If you proceed with the next step
analogue tuning data will be erased (all
stations and their programme
positions stored in your TV's memory will
CH41
be wiped out so the new settings can be
stored).
AUTO SETUP IN PROGRESS
S If you exit the procedure after this point
and before Auto setup is complete, no SEARCHING : PLEASE WAIT
station information will be
Stored Ch44 BBC1
stored. Restart and complete the Auto
setup procedure so that the TV is retuned.
21 68
The TV will search for, locate and sort into
order your local stations.
Exit
Once this operation is completed the TV
Return
will display programme position 1
25
TUNING MENU - MANUAL TUNING (Analogue mode)
-
Manual tuning of the Programme positions is available either from the On
Screen Display menu or from the top panel controls.
Manual tuning menu
Open the Main menu MENU
1
CH41
Move to Setup menu Tuning menu
Programme edit
Auto setup
Access Setup menu Manual tuning Access
Select
Move to Tuning menu Access
Store
Exit
Return
Access Tuning menu
Move to Manual tuning ---
1
Access Manual tuning CH41
Manual tuning
Select the programme
position to be tuned
21 68
Start tuning
+
Search down/up
-
Store
When the desired Exit
programme is found, Return
press OK button to store C / 0 - 9 Direct entry
EXIT
Press the EXIT button to exit
Note:
If your VCR is connected to this TV by
an RF cable only, choose programme
position "0" to tune to the VCR
signals.
26
TUNING MENU - MANUAL TUNING (Analogue mode)
-
Manual tuning
Press the F button F
(Control panel) until
"Tuning mode" is reached
Press the -- or + button ---/v
to access Tuning mode
Press the TV/AV button TV/AV
to move between "Change
programme" or "Search"
Press the -- or + button ---/v
to change programme
position, start search.
When the desired station
is found, press STR to STR
store the changes
The programme position Tuning mode
will flash F : No - , + : Yes
Repeat above procedure
to tune additional F
programmes or press
the F button to exit
1
CH41 SC2
Manual tuning
- ,+ : Search
TV/AV : Move cursor
STR : To store
F : To exit
21 68
27
SETUP MENU - OWNER I.D.
-
Owner I.D. allows you to enter a security code and address information so that in
the unfortunate event of theft it will help the Police to determine the owner.
If the Owner I.D. information was not entered after Auto setup or it is necessary to alter some of the I.D.
information it can be re--accessed via the Setup menu (In both Analogue and DVB modes).
Open the Main menu MENU
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
