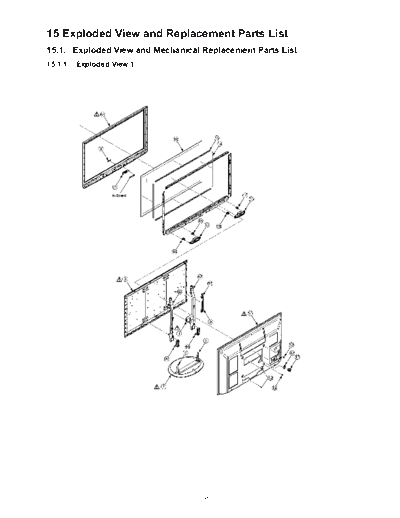

Image preview - the first page of the document
>> Download TXPF50S20 documenatation <<
Text preview - extract from the document
15 Exploded View and Replacement Parts List
15.1. Exploded View and Mechanical Replacement Parts List
15.1.1. Exploded View 1
91
15.1.2. Exploded View 2
92
15.1.3. Packing 1
93
15.1.4. Packing 2
94
15.1.5. Mechanical Replacement Parts List
95
Ref.
Safety Part No. Part Name & Description Q'ty Remarks
No.
1 K2AHYH000033 AC INLET WITH CABLE 1 PAVCCZ
2 K2CN3YY00006 AC CORD 1 PAVCCZ P50S20E, PF50S20, PR50S20
2 K2CT3YY00021 AC CORD 1 PAVCCZ P50S20L
3 MD50F13C1Z PLASMA DISPLAY PANEL 1 PAVCCZ
4 N2QAYB000487 REMOTE CONTROL 1 PAVCCZ
5 TBLA3679 STAND POLE R 1
6 TBLA3680 STAND POLE L 1
7 TBLX0139 PEDESTAL STAND(ROUND BLACK) 1 PAVCCZ
8 TBMA352 PANASONIC SHEET BADGE 1 PAVCCZ
9 TBX3EA00401 POWER BUTTON 1
THEJ0339 SCREW(BC-TUNER:1 SIDE_COVER:4) 5
THEL052Z SCREW (BC TOP:4) 2
THEL080N PF SCREW(5x30) 4
THTD020J SCREW(A-PRINT:4) 4
THTF016J SCREW(P:9 TU:2) 11
THTF016J SCREW(SC:7 SS:8 SUSD:3 K-P:4) 22
THTF016J SCREW(DD:30 C:13) 43
10 TKGA5642-1 FRONT GLASS 1 PAVCCZ
11 TKK3EC5009 LED PANEL 1 PAVCCZ
12 TKKL5493 M8 CAP 4
TMK0E102 FELT 1 PAVCCZ
13 TMK0EG016 SPONGE(FRONT GLASS/UPPER/BOTTOM) 2 PAVCCZ
14 TMK0EG017 SPONGE(FRONT GLASS/LEFT/RIGHT) 2 PAVCCZ
TMM23417 CLAMPER 2
TMME292 CLAMPER 1
TMME331 CLAMPER(P:1) 1
TMME332 CLAMPER(HANGER:4) 4
TMME332 CLAMPER(SS:2) 2
TMME332 CLAMPER 2
TMME379 CLAMPER 3
15 TMW3EX002 SP BRACKET L 2
16 TMW3EX003 SP BRACKET R 2
17 TMXX064 AC CORD CLAMPER A 1
18 TMXX065 AC CORD CLAMPER B 1
19 TMZX5176 STAND BRACKET-L 1
20 TMZX5177 STAND BRACKET-R 1
21 TPC0E53901 CARTON BOX BOTTOM 1 PAVCCZ
22 TPC0E68703 CARTON BOX TOP 1 PAVCCZ
23 TPD0E1122 TOP CUSHION 1 PAVCCZ
24 TPD0E2119 BOTTOM CUSHION 1 PAVCCZ
25 TPD0E2120 PEDESTAL CUSHION 1 PAVCCZ
26 TPD169487 JOINT 4
27 TPE0E4010 PROTECT COVER 1 PAVCCZ
96
Ref.
Safety Part No. Part Name & Description Q'ty Remarks
No.
28 TPE0E9002 ACCESSORIES BAG 1 PAVCCZ
29 TPE0E9003 BAG FOR AC CORD 1 PAVCCZ
30 TPEB340 BAG (STAND ACCESSORY) 1
31 TPEB367-1 BAG (PEDESTAL STAND) 1
TPG0E9321 PAPER CAP 0.25 PAVCCZ
32 TQB0E0936A INSTRUCTION BOOK(GERMAN) 1 PAVCCZ P50S20E
32 TQB0E0936B INSTRUCTION BOOK(DUTCH) 1 PAVCCZ P50S20E
32 TQB0E0936C INSTRUCTION BOOK(ITALIAN) 1 PAVCCZ P50S20E
32 TQB0E0936D INSTRUCTION BOOK(FRENCH) 1 PAVCCZ P50S20E
32 TQB0E0936E INSTRUCTION BOOK(SPANISH) 1 PAVCCZ P50S20E
32 TQB0E0936F INSTRUCTION BOOK(SWEDISH) 1 PAVCCZ P50S20E
32 TQB0E0936G INSTRUCTION BOOK(NORWEGIAN) 1 PAVCCZ P50S20E
32 TQB0E0936H INSTRUCTION BOOK(FINNISH) 1 PAVCCZ P50S20E
32 TQB0E0936I INSTRUCTION BOOK(LITHUANIAN) 1 PAVCCZ P50S20E
32 TQB0E0936J INSTRUCTION BOOK(PORTUGUESE) 1 PAVCCZ P50S20E
32 TQB0E0936K INSTRUCTION BOOK(DANISH) 1 PAVCCZ P50S20E
32 TQB0E0936M INSTRUCTION BOOK(BULGARIAN) 1 PAVCCZ P50S20E
32 TQB0E0936N INSTRUCTION BOOK(ROMANIAN) 1 PAVCCZ P50S20E
32 TQB0E0936O INSTRUCTION BOOK(LATVIAN) 1 PAVCCZ P50S20E
32 TQB0E0936P INSTRUCTION BOOK(POLISH) 1 PAVCCZ P50S20E
32 TQB0E0936Q INSTRUCTION BOOK(HUNGARIAN) 1 PAVCCZ P50S20E
32 TQB0E0936R INSTRUCTION BOOK(CZECH) 1 PAVCCZ P50S20E
32 TQB0E0936S INSTRUCTION BOOK(GREEK) 1 PAVCCZ P50S20E
32 TQB0E0936T INSTRUCTION BOOK(TURKISH) 1 PAVCCZ P50S20E
32 TQB0E0936U INSTRUCTION BOOK(ENGLISH) 1 PAVCCZ P50S20E
32 TQB0E0936W INSTRUCTION BOOK(SLOVAKIAN) 1 PAVCCZ P50S20E
32 TQB0E0936Z INSTRUCTION BOOK(ESTONIAN) 1 PAVCCZ P50S20E
32 TQB0E0937 INSTRUCTION BOOK(ENGLISH) 1 PAVCCZ P50S20L
32 TQB0E0968D INSTRUCTION BOOK(FRENCH) 1 PAVCCZ PF50S20
32 TQB0E0968U INSTRUCTION BOOK(ENGLISH) 1 PAVCCZ PF50S20
32 TQB0E09389 INSTRUCTION BOOK(KAZAKHATAN) 1 PAVCCZ PR50S20
32 TQB0E0938L INSTRUCTION BOOK(RUSSIAN) 1 PAVCCZ PR50S20
32 TQB0E0938Y INSTRUCTION BOOK(UKRAINIAN) 1 PAVCCZ PR50S20
33 TQB0E0936X INSTRUCTION BOOK(CD-ROM) 1 PAVCCZ P50S20E
TQZJ203 SCREW USE HANDBILL 1
41 TSXL519 CABLE (C26-C36/SU11-SD11) 2
42 TSXL724 CABLE (C10-C20) 1
43 TSXM066 CABLE (A20-SC20) 1 PAVCCZ
44 TSXM067 CABLE (A31-C21) 1 PAVCCZ
45 TSXM068 CABLE (A32-C31) 1 PAVCCZ
51 TTU0E0716 REAR COVER 1 PAVCCZ P50S20E
51 TTU0E0758 REAR COVER 1 PAVCCZ P50S20L
51 TTU0E0733 REAR COVER 1 PAVCCZ PF50S20
97
Ref.
Safety Part No. Part Name & Description Q'ty Remarks
No.
51 TTU0E0727 REAR COVER 1 PAVCCZ PR50S20
52 TUX0E154 50HANGER METAL 2 PAVCCZ
53 TXFEA01LWUE SPEAKER ASSY 2 PAVCCZ
54 TXFKP01LWUE SIDE TERMINAL COVER ASSY 1 PAVCCZ
55 TXFKY01MHUE CABINET ASSY 1 PAVCCZ
TXJA11MLUE SPEAKER LEAD (A11-SPL/SPR) 1 PAVCCZ
XSB3+6FJ SCREW(HDMI:3) 3
XSB4+6FN BIND SCREW 2
XTB4+12GFJ SCREW(GH:20 PW:2 LED:1) 22
XTB4+12GFJK SCREW(BC:11) 11
XTB4+12GFN SCREW (4*12) 4
XTV3+10JFJK SCREW(REAR AV:2) 2
XYN3+F10FJK SCREW(BC-AC_INLET:2) 2
XYN3+J10FJ SCREW 17
XYN4+E6FJ SCREW(INLET:1) 1
XYN4+F10FJ SCREW 6
XYN4+F10FJ SCREW(HANGER METAL ASSY:4) 4
XYN4+F10FJ SCREW(SP BRKT:4) 4
XYN4+F10FJ SCREW(AL-GHT:4) 4
XYN4+F10FJ SCREW(SUSD:4) 4
XYN4+F10FJ SCREW(KARI-HANGER METAL:4) 4
XYN5+F18FN SCREW (STAND POLE) 4
XZB17X19C03 POLY BAG (STAND POLE) 1
XZB7.5X9D05 POLY BAG (SCREW) 1
XZBT6506 POLY BAG (INSTRUCTION BOOK) 1
98
15.2. Electrical Replacement Parts List
15.2.1. Replacement Parts List Notes
99
15.2.2. Electrical Replacement Parts List
Safety Ref. No. Part No. Part Name & Pcs Remarks
Description
Safety Ref. No. Part No. Part Name & Pcs Remarks C2318 F1H1H104A970 C 0.1UF, K, 50V 1
Description
C2320 F1J1E105A231 C 1 UF 25V 1
C2321 F1H1H104A970 C 0.1UF, K, 50V 1
PCB ETX2MM806MEH CIRCUIT BOARD P 1 (RTL)PA
VCCZ C2323 F1H1H104A970 C 0.1UF, K, 50V 1
PCB A-P50S20E CIRCUIT BOARD A 1 (RTL)PA C2324 F1J1E105A231 C 1 UF 25V 1
VCCZ C2325 F1G1H102A730 C 1000UF, 50V 1
P50S20E C2334 F1J1H474A757 C 0.47UF, 50V 1
PCB A-P50S20L CIRCUIT BOARD A 1 (RTL)PA C2335 F1H1E104A129 C 0.1UF, 25V 1
VCCZ C2336 F1H1E104A129 C 0.1UF, 25V 1
P50S20L
C2337 F1J1H474A757 C 0.47UF, 50V 1
PCB A-PF50S20 CIRCUIT BOARD A 1 (RTL)PA
C2338 F1H1E104A129 C 0.1UF, 25V 1
VCCZ
PF50S20 C2339 F1H1E104A129 C 0.1UF, 25V 1
PCB A-PR50S20 CIRCUIT BOARD A 1 (RTL)PA C2340 F1H1H223A970 C 0.22UF, K, 50V 1
VCCZ C2341 F1H1H223A970 C 0.22UF, K, 50V 1
PR50S20 C2342 F1H1H223A970 C 0.22UF, K, 50V 1
PCB TXN/K1LWUE CIRCUIT BOARD K 1 (RTL)PA C2343 F1H1H223A970 C 0.22UF, K, 50V 1
VCCZ C2344 F1H1H223A970 C 0.22UF, K, 50V 1
PCB TNPA5099 CIRCUIT BOARD C1 1 (RTL) C2345 F1H1H223A970 C 0.22UF, K, 50V 1
PCB TNPA5100 CIRCUIT BOARD C2 1 (RTL) C2346 F1H1H223A970 C 0.22UF, K, 50V 1
PCB TNPA5101 CIRCUIT BOARD C3 1 (RTL) C2347 F1H1H223A970 C 0.22UF, K, 50V 1
PCB TXNSC11FEK CIRCUIT BOARD SC 1 (RTL)PA C2349 F1G1H102A730 C 1000UF, 50V 1
VCCZ C2351 F1G1H102A730 C 1000UF, 50V 1
PCB TXNSD11FEK CIRCUIT BOARD SD 1 PAVCCZ C2353 F1G1H102A730 C 1000UF, 50V 1
PCB TXNSS11FEK CIRCUIT BOARD SS 1 (RTL)PA C2355 F1G1H102A730 C 1000UF, 50V 1
VCCZ C2356 F1K1E106A136 C 10UF, Z, 25V 1
PCB TNPA4804 CIRCUIT BOARD 1 (RTL) C2357 F1K1E106A136 C 10UF, Z, 25V 1
SS2
C2510 F1H1H103A970 C 0.001UF, K, 1
PCB TXNSU11FEK CIRCUIT BOARD SU 1 PAVCCZ 50V
C2511 F1J1A106A087 C 0.010UF, K, 1
A1 K1KY08AA0719 8P CONNECTOR 1 10V
A6 K1KY11AA0719 11P CONNECTOR 1 C2515 F1H1H103A970 C 0.001UF, K, 1
A7 K1KY14AA0719 14P CONNECTOR 1 PAVCCZ 50V
A11 K1KA04AA0728 4P CONNECTOR 1 C2521 F1H1C104A143 C 0.1UF, K, 16V 1
A20 K1MY35BA0345 35P CONNECTOR 1 C2751 F1J1E105A231 C 1 UF 25V 1
A31 K1MY68BA0345 68P CONNECTOR 1 C2824 F1J1A106A087 C 0.010UF, K, 1
10V
A32 K1MY68BA0345 68P CONNECTOR 1
C2871 F1K1E106A136 C 10UF, Z, 25V 1
C2872 F1G1E103A123 C 0.010UF, K, 1
C0900 F1G1C104A116 C 0.10UF, K, 16V 1
25V
C1100 F1G1E103A123 C 0.010UF, K, 1
C2873 F1J1A106A087 C 0.010UF, K, 1
25V
10V
C1101 F1G1E103A123 C 0.010UF, K, 1
C2874 F1J1A106A087 C 0.010UF, K, 1
25V
10V
C1102 F1G1C104A116 C 0.10UF, K, 16V 1
C2877 F1H1H223A970 C 0.22UF, K, 50V 1
C2055 F1J1A106A087 C 0.010UF, K, 1
C2878 F1H1H472A970 C 4700PF, K, 50V 1
10V
C2879 F1G1E103A123 C 0.010UF, K, 1
C2057 F1J1A106A087 C 0.010UF, K, 1
25V
10V
C2883 F2H1E470A007 E 47UF, 25V 1
C2071 EEEHB0J101UR C 100PF, J, 6.3V 1
C2884 F1J1E105A231 C 1 UF 25V 1
C2072 EEEHB0J101UR C 100PF, J, 6.3V 1
C2885 F1K1E106A136 C 10UF, Z, 25V 1
C2073 F1G1E333A091 C 0.033UF, K, 1
25V C2886 F1K1E106A136 C 10UF, Z, 25V 1
C2074 F1G1E333A091 C 0.033UF, K, 1 C2905 EEEHB1C101P C 100PF, J, 16V 1
25V C2907 F1G1C104A116 C 0.10UF, K, 16V 1
C2104 F1G1H100A731 C 10PF, K, 50V 1 C2908 F1G1C104A116 C 0.10UF, K, 16V 1
C2107 F1G1A105A047 C 1UF, K, 10V 1 C2910 F1G1C104A116 C 0.10UF, K, 16V 1
C2108 F1G1A105A047 C 1UF, K, 10V 1 C2911 F1G1C104A116 C 0.10UF, K, 16V 1
C2110 F1G1C104A116 C 0.10UF, K, 16V 1 C2917 F1G1H222A730 C 2200UF, 50V 1
C2301 F1G1C104A116 C 0.10UF, K, 16V 1 C2950 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1
C2302 F1G1C104A116 C 0.10UF, K, 16V 1 C2951 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1
C2304 F1J1E105A231 C 1 UF 25V 1 C2959 F1G1C104A116 C 0.10UF, K, 16V 1
C2309 F1K1E106A136 C 10UF, Z, 25V 1 C2961 ECJ1VB1A105K C 0.01UF, Z, 50V 1
C2312 F1K1E106A136 C 10UF, Z, 25V 1 C2965 ECJ1VB1A105K C 0.01UF, Z, 50V 1
C2313 F1G1H102A730 C 1000UF, 50V 1 C2966 F1H1A225A051 C 22UF, 50V 1
C2314 F1J1E105A231 C 1 UF 25V 1 C3003 F1G1C104A116 C 0.10UF, K, 16V 1
C2316 F1H1H104A970 C 0.1UF, K, 50V 1 C3004 F1G1C104A116 C 0.10UF, K, 16V 1
C2317 F1J1E105A231 C 1 UF 25V 1
100
Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks
Description Description
C3011 F1J1A106A087 C 0.010UF, K, 1 C3153 F1G1H561A730 C 56UF, 50V 1
10V C3154 F1G1H561A730 C 56UF, 50V 1
C3015 F1J1A106A087 C 0.010UF, K, 1 C3155 F1G1H561A730 C 56UF, 50V 1
10V
C3156 F1G1H561A730 C 56UF, 50V 1
C3016 F1G1C104A116 C 0.10UF, K, 16V 1
C3157 ECJ1VB1A105K C 0.01UF, Z, 50V 1
C3018 F1G1C104A116 C 0.10UF, K, 16V 1
C3158 ECJ1VB1A105K C 0.01UF, Z, 50V 1
C3019 F1G1C104A116 C 0.10UF, K, 16V 1
C3159 F1J1A106A087 C 0.010UF, K, 1
C3020 ECJ1VB1A105K C 0.01UF, Z, 50V 1 10V
C3021 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3160 F1J1A106A087 C 0.010UF, K, 1
C3022 ECJ1VB1A105K C 0.01UF, Z, 50V 1 10V
C3023 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3161 F1J1A106A087 C 0.010UF, K, 1
C3024 F1J1A106A087 C 0.010UF, K, 1 10V
10V C3162 F1J1A106A087 C 0.010UF, K, 1
C3025 F1J1A106A087 C 0.010UF, K, 1 10V
10V C3163 F1J1A106A087 C 0.010UF, K, 1
C3031 ECJ1VB1A105K C 0.01UF, Z, 50V 1 10V
C3032 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3164 F1J1A106A087 C 0.010UF, K, 1
10V
C3105 F1G1H561A730 C 56UF, 50V 1
C3165 F1J1A106A087 C 0.010UF, K, 1
C3106 F1G1H561A730 C 56UF, 50V 1
10V
C3108 F1G1E333A091 C 0.033UF, K, 1
C4546 ECJ1VB0J105K C 1UF, K, 6.3V 1
25V
C4547 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3109 F1G1E333A091 C 0.033UF, K, 1
25V C4660 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3111 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4661 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3112 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4662 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3113 F1J1A106A087 C 0.010UF, K, 1 C4663 ECJ1VB0J105K C 1UF, K, 6.3V 1
10V C4664 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3119 EEEHB1C101P C 100PF, J, 16V 1 C4665 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3120 EEEHB1C101P C 100PF, J, 16V 1 C4666 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3121 EEEHB1C101P C 100PF, J, 16V 1 C4667 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3122 EEEHB1C101P C 100PF, J, 16V 1 C4701 F1G1C104A116 C 0.10UF, K, 16V 1
C3123 F1J1A106A087 C 0.010UF, K, 1 C4702 F1G1C104A116 C 0.10UF, K, 16V 1
10V C4704 F1G1C104A116 C 0.10UF, K, 16V 1
C3124 F1J1A106A087 C 0.010UF, K, 1 C4705 F1G1C104A116 C 0.10UF, K, 16V 1
10V
C4707 F1G1C104A116 C 0.10UF, K, 16V 1
C3125 F1J1A106A087 C 0.010UF, K, 1
C4708 F1G1C104A116 C 0.10UF, K, 16V 1
10V
C5000 F1G1C104A116 C 0.10UF, K, 16V 1
C3126 F1J1A106A087 C 0.010UF, K, 1
10V C5001 F1G1C104A116 C 0.10UF, K, 16V 1
C3127 F1J1A106A087 C 0.010UF, K, 1 C5002 F1G1C104A116 C 0.10UF, K, 16V 1
10V C5003 F1G1C104A116 C 0.10UF, K, 16V 1
C3128 F1J1A106A087 C 0.010UF, K, 1 C5004 F1G1H102A730 C 1000UF, 50V 1
10V C5050 F1J1A475A087 C 4.7UF, K, 10V 1
C3129 F1J1A106A087 C 0.010UF, K, 1 C5052 F2G1A221A149 E 220UF, 10V 1
10V C5055 F1G1C104A116 C 0.10UF, K, 16V 1
C3130 F1G1C104A116 C 0.10UF, K, 16V 1 C5058 ECJ1VB0J105K C 1UF, K, 6.3V 1
C3131 F1J1A106A087 C 0.010UF, K, 1 C5100 F1G1C104A116 C 0.10UF, K, 16V 1
10V
C5101 F1H1A474A084 C 0.47UF, 50V 1
C3132 F1J1A106A087 C 0.010UF, K, 1
10V C5155 F1J0J106A004 C 0.010UF, K, 1
16V
C3133 F1G1H561A730 C 56UF, 50V 1
C5156 F1J0J106A004 C 0.010UF, K, 1
C3134 F1G1H561A730 C 56UF, 50V 1 16V
C3135 F1G1H561A730 C 56UF, 50V 1 C5157 F1J0J106A004 C 0.010UF, K, 1
C3136 F1G1H561A730 C 56UF, 50V 1 16V
C3137 F1G1H561A730 C 56UF, 50V 1 C5158 F1J0J106A004 C 0.010UF, K, 1
C3138 F1G1H561A730 C 56UF, 50V 1 16V
C3139 F1G1H561A730 C 56UF, 50V 1 C5159 F1J0J106A004 C 0.010UF, K, 1
C3140 F1G1H561A730 C 56UF, 50V 1 16V
C3141 F1J1A106A087 C 0.010UF, K, 1 C5160 F1J0J106A004 C 0.010UF, K, 1
10V 16V
C3142 F1J1A106A087 C 0.010UF, K, 1 C5471 F1G1C104A116 C 0.10UF, K, 16V 1
10V C5472 F1G1C104A116 C 0.10UF, K, 16V 1
C3143 F1J1A106A087 C 0.010UF, K, 1 C5600 F1K1E106A136 C 10UF, Z, 25V 1
10V C5601 F1K1E106A136 C 10UF, Z, 25V 1
C3144 F1J1A106A087 C 0.010UF, K, 1 C5602 F1G1E682A123 C 6800UF, Z, 25V 1
10V C5603 F1K1E106A136 C 10UF, Z, 25V 1
C3145 F1J1A106A087 C 0.010UF, K, 1 C5604 F1K1E106A136 C 10UF, Z, 25V 1
10V
C5606 F1G1A154A053 C0.015UF, K, 10V 1
C3146 F1J1A106A087 C 0.010UF, K, 1
10V C5607 F1J1A475A087 C 4.7UF, K, 10V 1
C3147 F1J1A106A087 C 0.010UF, K, 1 C5608 F1H1C104A143 C 0.1UF, K, 16V 1
10V C5609 F1H1C104A143 C 0.1UF, K, 16V 1
C3148 F1J1A106A087 C 0.010UF, K, 1 C5611 F1J1E105A231 C 1 UF 25V 1
10V C5612 F1H1C105A145 C 0.01UF, K, 16V 1
C3149 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5615 F1H1A225A051 C 22UF, 50V 1
C3150 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5616 F1G1E103A123 C 0.010UF, K, 1
C3151 ECJ1VB1A105K C 0.01UF, Z, 50V 1 25V
C3152 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5617 F1K0J226A008 C 22UF, K,6.3V 1
101
Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks
Description Description
C5618 F1K0J226A008 C 22UF, K,6.3V 1 C8058 F1G1C104A116 C 0.10UF, K, 16V 1
C5619 F1K0J226A008 C 22UF, K,6.3V 1 C8062 F1G1C104A116 C 0.10UF, K, 16V 1
C5620 F1K0J226A008 C 22UF, K,6.3V 1 C8063 F1G1C104A116 C 0.10UF, K, 16V 1
C5621 F1K0J226A008 C 22UF, K,6.3V 1 C8064 F1J0G2260001 C 0.001UF, 6.3V 1
C5622 F1K0J226A008 C 22UF, K,6.3V 1 C8067 F1G1C104A116 C 0.10UF, K, 16V 1
C5625 F1K1E106A136 C 10UF, Z, 25V 1 C8068 F1G1C104A116 C 0.10UF, K, 16V 1
C5626 F1K1E106A136 C 10UF, Z, 25V 1 C8069 F1G1C104A116 C 0.10UF, K, 16V 1
C5627 F1G1A393A053 C0.015UF, K, 10V 1 C8070 F1G1C104A116 C 0.10UF, K, 16V 1
C5628 F1K1E106A136 C 10UF, Z, 25V 1 C8073 ECJ1VB0J105K C 1UF, K, 6.3V 1
C5629 F1K1E106A136 C 10UF, Z, 25V 1 C8074 ECJ1VB0J105K C 1UF, K, 6.3V 1
C5631 F1G1C104A116 C 0.10UF, K, 16V 1 C8075 ECJ1VB0J105K C 1UF, K, 6.3V 1
C5632 F1J1A475A087 C 4.7UF, K, 10V 1 C8076 F1G1C104A116 C 0.10UF, K, 16V 1
C5633 F1H1C104A143 C 0.1UF, K, 16V 1 C8077 F1G1E103A123 C 0.010UF, K, 1
C5634 F1H1C104A143 C 0.1UF, K, 16V 1 25V
C5635 F1H1C105A145 C 0.01UF, K, 16V 1 C8079 F1G1H120A731 C 12UF, 50V 1
C5641 F1K0J226A008 C 22UF, K,6.3V 1 C8080 F1G1H8R0A732 C 8.0UF, 50V 1
C5642 F1K0J226A008 C 22UF, K,6.3V 1 C8081 F1G1H100A731 C 10PF, K, 50V 1
C5643 F1K0J226A008 C 22UF, K,6.3V 1 C8082 F1G1H8R0A732 C 8.0UF, 50V 1
C5649 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C8085 F1J1A106A087 C 0.010UF, K, 1
10V
C5650 F1H1A225A051 C 22UF, 50V 1
C8091 F1G1C104A116 C 0.10UF, K, 16V 1
C5651 F1J1A475A087 C 4.7UF, K, 10V 1
C8093 ECJ1VB0J105K C 1UF, K, 6.3V 1
C5652 F1J1A475A087 C 4.7UF, K, 10V 1
C8097 F1G1C104A116 C 0.10UF, K, 16V 1
C5658 F1K0J226A008 C 22UF, K,6.3V 1
C8099 ECJ1VB0J105K C 1UF, K, 6.3V 1
C5659 F1K0J226A008 C 22UF, K,6.3V 1
C8100 F1J1A106A087 C 0.010UF, K, 1
C5660 F1K0J226A008 C 22UF, K,6.3V 1
10V
C5722 F1J1E105A231 C 1 UF 25V 1
C8101 F1J1A106A087 C 0.010UF, K, 1
C5723 F1H1C105A145 C 0.01UF, K, 16V 1 10V
C8000 F1G1C104A116 C 0.10UF, K, 16V 1 C8104 ECJ1VB0J105K C 1UF, K, 6.3V 1
C8001 F1G1C104A116 C 0.10UF, K, 16V 1 C8105 F1G1C104A116 C 0.10UF, K, 16V 1
C8002 F1G1C104A116 C 0.10UF, K, 16V 1 C8108 F1G1C104A116 C 0.10UF, K, 16V 1
C8003 F1G1C104A116 C 0.10UF, K, 16V 1 C8110 F1G1C104A116 C 0.10UF, K, 16V 1
C8004 F1G1C104A116 C 0.10UF, K, 16V 1 C8111 F1G1C104A116 C 0.10UF, K, 16V 1
C8005 F1G1C104A116 C 0.10UF, K, 16V 1 C8112 F1G1C104A116 C 0.10UF, K, 16V 1
C8006 F1G1C104A116 C 0.10UF, K, 16V 1 C8113 F1G1C104A116 C 0.10UF, K, 16V 1
C8007 F1G1C104A116 C 0.10UF, K, 16V 1 C8114 F1G1C104A116 C 0.10UF, K, 16V 1
C8008 F1G1C104A116 C 0.10UF, K, 16V 1 C8115 F1G1C104A116 C 0.10UF, K, 16V 1
C8009 F1G1C104A116 C 0.10UF, K, 16V 1 C8116 F1G1C104A116 C 0.10UF, K, 16V 1
C8010 F1G1C104A116 C 0.10UF, K, 16V 1 C8117 F1G1C104A116 C 0.10UF, K, 16V 1
C8011 F1G1C104A116 C 0.10UF, K, 16V 1 C8120 F1G1C104A116 C 0.10UF, K, 16V 1
C8012 F1G1C104A116 C 0.10UF, K, 16V 1 C8123 F1G1C104A116 C 0.10UF, K, 16V 1
C8013 F1G1C104A116 C 0.10UF, K, 16V 1 C8124 F1J1A106A087 C 0.010UF, K, 1
C8014 F1G1C104A116 C 0.10UF, K, 16V 1 10V
C8015 ECJ1VB0J105K C 1UF, K, 6.3V 1 C8125 F1J1A106A087 C 0.010UF, K, 1
C8016 ECJ1VB0J105K C 1UF, K, 6.3V 1 10V
C8017 F1G1C104A116 C 0.10UF, K, 16V 1 C8126 F1J1A106A087 C 0.010UF, K, 1
C8019 F1G1C104A116 C 0.10UF, K, 16V 1 10V
C8020 F1G1C104A116 C 0.10UF, K, 16V 1 C8127 ECJ1VB0J105K C 1UF, K, 6.3V 1
C8021 F1G1C104A116 C 0.10UF, K, 16V 1 C8300 F1G1C104A116 C 0.10UF, K, 16V 1
C8022 F1J1A106A087 C 0.010UF, K, 1 C8301 F1G1C104A116 C 0.10UF, K, 16V 1
10V C8303 F1G1C104A116 C 0.10UF, K, 16V 1
C8023 F1J1A106A087 C 0.010UF, K, 1 C8304 F1G1H100A731 C 10PF, K, 50V 1
10V C8305 F1G1H100A731 C 10PF, K, 50V 1
C8024 F1J1A106A087 C 0.010UF, K, 1 C8306 F1G1C104A116 C 0.10UF, K, 16V 1
10V C8308 F1G1C104A116 C 0.10UF, K, 16V 1
C8035 F1J1A106A087 C 0.010UF, K, 1 C8309 F1G1C104A116 C 0.10UF, K, 16V 1
10V
C8310 F1G1C104A116 C 0.10UF, K, 16V 1
C8036 F1J1A106A087 C 0.010UF, K, 1
C8311 F1J1A106A087 C 0.010UF, K, 1
10V
10V
C8037 F1G1C104A116 C 0.10UF, K, 16V 1
C8314 F1G1C104A116 C 0.10UF, K, 16V 1
C8042 ECJ1VB0J105K C 1UF, K, 6.3V 1
C8315 F1G1C104A116 C 0.10UF, K, 16V 1
C8044 F1J1A106A087 C 0.010UF, K, 1
C8316 F1G1C104A116 C 0.10UF, K, 16V 1
10V
C8317 F1G1C104A116 C 0.10UF, K, 16V 1
C8045 F1G1C104A116 C 0.10UF, K, 16V 1
C8318 F1G1C104A116 C 0.10UF, K, 16V 1
C8046 F1G1C104A116 C 0.10UF, K, 16V 1
C8319 F1G1C104A116 C 0.10UF, K, 16V 1
C8047 F1G1C104A116 C 0.10UF, K, 16V 1
C8320 ECJ1VB1A105K C 0.01UF, Z, 50V 1
C8048 ECJ1VB0J105K C 1UF, K, 6.3V 1
C8321 F1H1A225A051 C 22UF, 50V 1
C8050 F1G1C104A116 C 0.10UF, K, 16V 1
C8322 F1G1C104A116 C 0.10UF, K, 16V 1
C8051 F1G1C104A116 C 0.10UF, K, 16V 1
C8324 F1G1H560A731 C 56UF, 50V 1
C8052 F1G1C104A116 C 0.10UF, K, 16V 1
C8325 F1G1H560A731 C 56UF, 50V 1
C8053 F1G1C104A116 C 0.10UF, K, 16V 1
C8400 F1G1C104A116 C 0.10UF, K, 16V 1
C8054 F1G1C104A116 C 0.10UF, K, 16V 1
C8401 F1G1C104A116 C 0.10UF, K, 16V 1
C8055 F1G1C104A116 C 0.10UF, K, 16V 1
C8402 F1G1C104A116 C 0.10UF, K, 16V 1
C8056 F1G1C104A116 C 0.10UF, K, 16V 1
C8403 F1G1C104A116 C 0.10UF, K, 16V 1
C8057 F1G1C104A116 C 0.10UF, K, 16V 1
C8404 F1G1C104A116 C 0.10UF, K, 16V 1
102
Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks
Description Description
C8405 F1G1C104A116 C 0.10UF, K, 16V 1 C9352 ECJ1VB0J105K C 1UF, K, 6.3V 1
C8406 F1G1C104A116 C 0.10UF, K, 16V 1 C9356 F1G1C104A116 C 0.10UF, K, 16V 1
C8407 F1G1C104A116 C 0.10UF, K, 16V 1 C9361 F1G1C104A116 C 0.10UF, K, 16V 1
C8408 F1G1C104A116 C 0.10UF, K, 16V 1 C9363 F1G1C104A116 C 0.10UF, K, 16V 1
C8409 F1G1C104A116 C 0.10UF, K, 16V 1 C9371 F1J1A106A087 C 0.010UF, K, 1
C8410 F1G1C104A116 C 0.10UF, K, 16V 1 10V
C8411 EEEHB1C101P C 100PF, J, 16V 1 C9372 F1J1A106A087 C 0.010UF, K, 1
10V
C8412 F1G1C104A116 C 0.10UF, K, 16V 1
C9373 F1J1A106A087 C 0.010UF, K, 1
C8413 F1G1E103A123 C 0.010UF, K, 1
10V
25V
C9374 F1G1C104A116 C 0.10UF, K, 16V 1
C8414 F1G1E103A123 C 0.010UF, K, 1
25V C9375 F1G1C104A116 C 0.10UF, K, 16V 1
C8415 F1G1C104A116 C 0.10UF, K, 16V 1 C9380 F1G1C104A116 C 0.10UF, K, 16V 1
C8600 F1G1H102A730 C 1000UF, 50V 1 C9383 F1G1C104A116 C 0.10UF, K, 16V 1
C8853 F1G1C104A116 C 0.10UF, K, 16V 1 C9391 F1J1A106A087 C 0.010UF, K, 1
10V
C8854 F1G1C104A116 C 0.10UF, K, 16V 1
C9392 F1J1A106A087 C 0.010UF, K, 1
C8860 F2G1C470A022 E 47UF, 16V 1
10V
C8861 F1G1C104A116 C 0.10UF, K, 16V 1
C9394 F1G1C104A116 C 0.10UF, K, 16V 1
C8862 F1G1C103A116 C 0.010UF, K, 1
C9400 F1G1C104A116 C 0.10UF, K, 16V 1
16V
C9401 F1G1C104A116 C 0.10UF, K, 16V 1
C8863 F1J0G226A001 C 0.001UF, 6.3V 1
C9402 F1G1C104A116 C 0.10UF, K, 16V 1
C8922 F1G1C104A116 C 0.10UF, K, 16V 1
C9800 F1H1E104A129 C 0.1UF, 25V 1
C8923 F1G1C104A116 C 0.10UF, K, 16V 1
C9801 F1G1E682A123 C 6800UF, Z, 25V 1
C8950 F1G1C103A116 C 0.010UF, K, 1
16V C9803 F1G1E472A123 C 4200UF, Z, 25V 1
C9040 F1G1C104A116 C 0.10UF, K, 16V 1 C9804 F1K1E106A136 C 10UF, Z, 25V 1
C9052 F1G1C104A116 C 0.10UF, K, 16V 1 C9805 F1K1E106A136 C 10UF, Z, 25V 1
C9066 F1K0J226A008 C 22UF, K,6.3V 1 C9806 F1G1H101A731 C 100PF, K, 50V 1
C9067 F1G1H561A730 C 56UF, 50V 1 C9807 F1G1H201A731 C 200 UF, K, 50V 1
C9069 F1G1H561A730 C 56UF, 50V 1 C9809 F1G1H102A730 C 1000UF, 50V 1
C9100 F1J1A106A087 C 0.010UF, K, 1 C9811 F1G1C104A116 C 0.10UF, K, 16V 1
10V C9812 F1K1E106A136 C 10UF, Z, 25V 1
C9101 F1G1E103A123 C 0.010UF, K, 1 C9813 F1K1E106A136 C 10UF, Z, 25V 1
25V C9814 F1K0J226A008 C 22UF, K,6.3V 1
C9102 F1K1E106A136 C 10UF, Z, 25V 1 C9815 F1K0J226A008 C 22UF, K,6.3V 1
C9103 F1G1E103A123 C 0.010UF, K, 1 C9816 F1G1E103A123 C 0.010UF, K, 1
25V 25V
C9106 F1K1E106A136 C 10UF, Z, 25V 1 C9825 F1K0J226A008 C 22UF, K,6.3V 1
C9108 F1G1E103A123 C 0.010UF, K, 1 C9827 F1K1E106A136 C 10UF, Z, 25V 1
25V
C9828 F1K1E106A136 C 10UF, Z, 25V 1
C9116 F1G1C104A116 C 0.10UF, K, 16V 1
C9829 F1G1C104A116 C 0.10UF, K, 16V 1
C9300 F1G1C104A116 C 0.10UF, K, 16V 1
C9830 F1G1E103A123 C 0.010UF, K, 1
C9301 F1G1H150A731 C 15UF, 50V 1 25V
C9302 F1G1H180A731 C 18UF, 50V 1 C9831 F1G1H272A730 C 2700UF, 50V 1
C9303 F1G1C104A116 C 0.10UF, K, 16V 1 C9834 F1K0J226A008 C 22UF, K,6.3V 1
C9307 F1G1C104A116 C 0.10UF, K, 16V 1 C9835 F1K0J226A008 C 22UF, K,6.3V 1
C9308 F1G1C104A116 C 0.10UF, K, 16V 1 C9900 F1G1E103A123 C 0.010UF, K, 1
C9311 F1G1C104A116 C 0.10UF, K, 16V 1 25V
C9312 F1J1A106A087 C 0.010UF, K, 1
10V CN0102 K1KA11A00178 11P CONNECTOR 1
C9313 F1G1C104A116 C 0.10UF, K, 16V 1
C9314 F1J1A106A087 C 0.010UF, K, 1 D1101 B0JCCE000008 DIODE 1
10V
D2014 B0ACCJ000048 DIODE 1
C9315 F1G1C104A116 C 0.10UF, K, 16V 1
D2520 B3AGB0000060 LED 1 PAVCCZ
C9316 F1J1A106A087 C 0.010UF, K, 1
D2870 B0JCME000092 DIODE 1
10V
D3123 DZ2J140M0L ZENER DIODE 1 PAVCCZ
C9319 F1G1C104A116 C 0.10UF, K, 16V 1
D3124 DZ2J140M0L ZENER DIODE 1 PAVCCZ
C9322 F1G1C104A116 C 0.10UF, K, 16V 1
D3129 B0ACCJ000048 DIODE 1
C9323 F1G1C104A116 C 0.10UF, K, 16V 1
D3130 B0ACCJ000048 DIODE 1
C9325 F1G1C104A116 C 0.10UF, K, 16V 1
D3300 K7AAAY000006 PHOTO LINK 1
C9327 F1G1C104A116 C 0.10UF, K, 16V 1
D4702 B0ACCJ000048 DIODE 1
C9335 F1J1A106A087 C 0.010UF, K, 1
10V D4704 B0JCCE000008 DIODE 1
C9336 F1J1A106A087 C 0.010UF, K, 1 D4719 B0ACCJ000048 DIODE 1
10V D4721 B0JCCE000008 DIODE 1
C9337 F1J1A106A087 C 0.010UF, K, 1 D4735 B0ACCJ000048 DIODE 1
10V D4737 B0JCCE000008 DIODE 1
C9339 F1G1C104A116 C 0.10UF, K, 16V 1 D5000 B0ADCJ000100 DIODE 1
C9340 F1G1C104A116 C 0.10UF, K, 16V 1 D5051 B0JCME000076 DIODE 1
C9342 F1G1C104A116 C 0.10UF, K, 16V 1 D5052 B0ACCJ000048 DIODE 1
C9344 F1G1C104A116 C 0.10UF, K, 16V 1 D5100 B0ADEJ000035 ZENER DIODE 1
C9347 ECJ1VB0J105K C 1UF, K, 6.3V 1 D5471 B0ACCJ000048 DIODE 1
C9349 F1J1A106A087 C 0.010UF, K, 1 D5472 B0ADEJ000035 ZENER DIODE 1
10V D5475 B0ADCJ000100 DIODE 1
C9350 F1G1C104A116 C 0.10UF, K, 16V 1 D5476 DZ2J068M0L ZENER DIODE 1 PAVCCZ
C9351 F1G1C104A116 C 0.10UF, K, 16V 1 D5477 DZ2J068M0L ZENER DIODE 1 PAVCCZ
103
Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks
Description Description
D5478 B0ADCJ000100 DIODE 1 L3100 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D5479 B0ADCJ000100 DIODE 1 L3101 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D5480 B0ADCJ000100 DIODE 1 L3102 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D5481 DZ2J120M0L ZENER DIODE 1 L3103 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D5482 DZ2J120M0L ZENER DIODE 1 L3104 J0JCC0000287 CHIP INDUCTOR 1
D5483 DZ2J068M0L ZENER DIODE 1 PAVCCZ L3107 J0JCC0000287 CHIP INDUCTOR 1
D5484 DZ2J068M0L ZENER DIODE 1 PAVCCZ L3108 J0JCC0000287 CHIP INDUCTOR 1
D5485 DZ2J068M0L ZENER DIODE 1 PAVCCZ L3109 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D5486 DZ2J068M0L ZENER DIODE 1 PAVCCZ L3110 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D5602 DZ2J056M0L ZENER DIODE 1 L3111 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D5605 B0HCMM000014 DIODE 1 L3112 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D9804 B0JCPG000030 DIODE 1 L3113 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D9805 B0JCPG000030 DIODE 1 L3114 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D9806 B0ADCJ000100 DIODE 1 L3115 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
D9807 B0ADCJ000100 DIODE 1 L3116 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
L3117 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
IC1000 C1ZBZ0003775 IC 1 L3118 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
IC1100 TVRR543 IC 1 PAVCCZ L3119 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
IC2301 C1AB00003230 IC 1 L3120 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
IC2870 C0DBAYY00462 IC 1 L3124 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
IC2950 C0CBCAG00031 IC 1 L3125 J0JYC0000331 CHIP INDUCTOR 1 PAVCCZ
IC2952 C0DBGYY00281 IC 1 L4700 J0JYC0000068 CHIP INDUCTOR 1
IC2953 C0DBFYY00049 IC 1 L4701 J0JYC0000068 CHIP INDUCTOR 1
IC3000 C1AB00003218 IC 1 L4702 J0JYC0000068 CHIP INDUCTOR 1
IC3001 C0DBGYY00281 IC 1 L4703 J0JYC0000068 CHIP INDUCTOR 1
IC5000 C1ZBZ0004161 IC 1 L4704 J0JYC0000068 CHIP INDUCTOR 1
IC5401 C0DBGYY00884 IC 1 L4705 J0JYC0000068 CHIP INDUCTOR 1
IC5600 C0DBAYY00715 IC 1 L4706 J0JYC0000068 CHIP INDUCTOR 1
IC5601 C0DBAYY00715 IC 1 L4707 J0JYC0000068 CHIP INDUCTOR 1
IC5603 C0DBFYY00049 IC 1 L4708 J0JYC0000068 CHIP INDUCTOR 1
IC5604 C0DBGYY00578 IC 1 L5000 J0JYC0000068 CHIP INDUCTOR 1
IC8001 MN2WS0125FE IC 1 PAVCCZ L5600 G1C2R2Z00006 INDUCTION COIL 1
IC8300 C1AB00003188 IC 1 PAVCCZ L5601 G1C3R3Z00004 INDUCTION COIL 1
IC8302 C0DBFYY00041 IC 1 PAVCCZ L5602 G1C100MA0077 INDUCTION COIL 1
IC8400 C1AB00003193 IC 1 PAVCCZ L5603 J0JHC0000075 CHIP INDUCTOR 1
IC8401 C1AB00002913 IC 1 PAVCCZ L5604 G1C3R3Z00005 INDUCTION COIL 1
IC8402 C0ZBZ0001584 IC 1 PAVCCZ L5605 G1C4R7Z00014 INDUCTION COIL 1
IC8921 TVRR431 IC 1 PAVCCZ L5606 G1C100MA0077 INDUCTION COIL 1
IC8950 TVRR530 IC 1 PAVCCZ L5608 J0JHC0000045 CHIP INDUCTOR 1
IC9300 C1AB00003258 IC 1 L8000 J0JHC0000045 CHIP INDUCTOR 1
IC9304 TVRR401 IC 1 PAVCCZ L8001 J0JHC0000116 CHIP INDUCTOR 1
IC9400 C0JBAZ002692 IC 1 L8002 J0JKC0000021 CHIP INDUCTOR 1
IC9401 C0JBAZ002692 IC 1 L8003 J0JKC0000021 CHIP INDUCTOR 1
IC9402 C0JBAZ002692 IC 1 L8004 J0JHC0000045 CHIP INDUCTOR 1
IC9800 C0DBAYY00605 IC 1 L8005 J0JKC0000021 CHIP INDUCTOR 1
IC9801 C0DBAYY00462 IC 1 L8007 J0JHC0000045 CHIP INDUCTOR 1
IC9803 C0DBAYY00462 IC 1 L8008 J0JHC0000045 CHIP INDUCTOR 1
L8009 J0JHC0000045 CHIP INDUCTOR 1
JK3100 K2HA710A0001 JACK 1 PAVCCZ L8010 J0JHC0000045 CHIP INDUCTOR 1
JK3107 K4AK13B00006 TERMINAL BOARD 1 PAVCCZ L8011 J0JHC0000045 CHIP INDUCTOR 1
JK3302 K1FY242A0001 CONNECTOR 1 PAVCCZ L8012 J0JHC0000045 CHIP INDUCTOR 1
JK4700 K1FY119D0011 CONNECTOR 1 PAVCCZ L8013 J0JHC0000045 CHIP INDUCTOR 1
JK4701 K1FY119D0011 CONNECTOR 1 PAVCCZ L8014 J0JHC0000045 CHIP INDUCTOR 1
JK4702 K1FY119E0015 CONNECTOR 1 PAVCCZ L8015 J0JHC0000045 CHIP INDUCTOR 1
JK8850 K1NA09E00080 SD CARD SLOT 1 L8016 J0JHC0000045 CHIP INDUCTOR 1
JK8940 K1NA68B00054 68P CONNECTOR 1 PAVCCZ L8017 J0JHC0000045 CHIP INDUCTOR 1
L8018 J0JHC0000045 CHIP INDUCTOR 1
K1 K1KA08B00270 8P CONNECTOR 1 L8019 J0JHC0000045 CHIP INDUCTOR 1
L8020 J0JHC0000045 CHIP INDUCTOR 1
L2301 J0JHC0000042 CHIP INDUCTOR 1 L8021 J0JHC0000045 CHIP INDUCTOR 1
L2302 G1C3R0ZA0156 INDUCTION COIL 1 L8022 J0JHC0000045 CHIP INDUCTOR 1
L2303 G1C220MA0416 INDUCTION COIL 1 L8023 J0JHC0000045 CHIP INDUCTOR 1
L2304 G1C220MA0416 INDUCTION COIL 1 L8024 J0JHC0000045 CHIP INDUCTOR 1
L2305 G1C220MA0416 INDUCTION COIL 1 L8025 J0JHC0000045 CHIP INDUCTOR 1
L2306 G1C220MA0416 INDUCTION COIL 1 L8300 J0JHC0000045 CHIP INDUCTOR 1
L2870 G1C101MA0416 INDUCTION COIL 1 PAVCCZ L8302 J0JHC0000045 CHIP INDUCTOR 1
L2871 J0JHC0000075 CHIP INDUCTOR 1 L8303 J0JHC0000045 CHIP INDUCTOR 1
L2900 J0JCC0000278 CHIP INDUCTOR 1 L8304 J0JHC0000045 CHIP INDUCTOR 1
L2901 J0JCC0000278 CHIP INDUCTOR 1 L8400 J0JHC0000045 CHIP INDUCTOR 1
L2904 J0JCC0000278 CHIP INDUCTOR 1 L8401 J0JHC0000045 CHIP INDUCTOR 1
L2905 J0JHC0000046 CHIP INDUCTOR 1 L8850 J0JHC0000045 CHIP INDUCTOR 1
L2906 J0JCC0000278 CHIP INDUCTOR 1 L8920 J0JHC0000075 CHIP INDUCTOR 1
L2950 J0JHC0000045 CHIP INDUCTOR 1 L9300 J0JHC0000117 CHIP INDUCTOR 1
104
Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks
Description Description
L9301 J0JHC0000117 CHIP INDUCTOR 1 R0948 D0GA222JA015 M 2.2KOHM, 1
L9302 J0JHC0000117 CHIP INDUCTOR 1 J,0.063W
L9800 G1C6R8Z00010 INDUCTION COIL 1 R0949 D0GA222JA015 M 2.2KOHM, 1
J,0.063W
L9801 G1C100MA0416 INDUCTION COIL 1
R0957 ERJ2GEJ102X M 1K OHM J 1/4W 1
L9802 G1C100MA0416 INDUCTION COIL 1
R0966 D0GA472JA015 M 4.7KOHM, 1
J,0.063W
PA5610 K5H4022A0031 FUSE 1
R0967 D0GA472JA015 M 4.7KOHM, 1
J,0.063W
Q2101 DSA200100L TRANSISTOR 1 R0980 D0GA472JA015 M 4.7KOHM, 1
Q2109 DSA200100L TRANSISTOR 1 J,0.063W
Q2252 DSA200100L TRANSISTOR 1 R0981 D0GA472JA015 M 4.7KOHM, 1
Q2253 B1AAFB000002 TRANSISTOR 1 PAVCCZ J,0.063W
Q2254 B1AAFB000002 TRANSISTOR 1 PAVCCZ R0982 ERJ2GEJ220 M 22 OHM, 1
Q2255 DSC2001S0L TRANSISTOR 1 J,0.063W
Q2301 DSA200100L TRANSISTOR 1 R0983 ERJ2GEJ220 M 22 OHM, 1
J,0.063W
Q2510 DSC200100L TRANSISTOR 1
R0984 D0GA472JA015 M 4.7KOHM, 1
Q2511 DSC200100L TRANSISTOR 1 J,0.063W
Q2512 DSC200100L TRANSISTOR 1 R0985 D0GA472JA015 M 4.7KOHM, 1
Q3100 B1AAFB000002 TRANSISTOR 1 PAVCCZ J,0.063W
Q3101 B1AAFB000002 TRANSISTOR 1 PAVCCZ R1179 D1BB7151A055 M7.15KOHM, 1/10W 1
Q3102 DSC200100L TRANSISTOR 1 R1180 ERJ2GEJ102X M 1K OHM J 1/4W 1
Q3103 DSC200100L TRANSISTOR 1 R1181 D0GA473JA015 M 47 OHM, 1
Q3104 DSC200100L TRANSISTOR 1 J,0.063W
Q3105 DSC200100L TRANSISTOR 1 R1183 D0GA472JA015 M 4.7KOHM, 1
Q4512 B1HFCFA00026 TRANSISTOR 1 J,0.063W
Q4513 DSA200100L TRANSISTOR 1 R1185 D0GA101JA015 M 100 OHM, 1
J,0.063W
Q4700 DSC200100L TRANSISTOR 1
R1186 D0GA473JA015 M 47 OHM, 1
Q4702 DSC200100L TRANSISTOR 1
J,0.063W
Q4704 DSC200100L TRANSISTOR 1
R1187 D0GA273JA015 M 27K OHM J 1
Q5000 DSC200100L TRANSISTOR 1 ,0.063W
Q5051 DSA200100L TRANSISTOR 1 R1503 D0GA473JA015 M 47 OHM, 1
Q5100 DSC2001S0L TRANSISTOR 1 J,0.063W
Q5101 DSC200100L TRANSISTOR 1 R1518 D0GA683JA015 M 68KOHM, 1
Q5471 DSA200100L TRANSISTOR 1 J,0.063W
Q5472 DSC2001S0L TRANSISTOR 1 R1519 D0GA473JA015 M 47 OHM, 1
Q5600 B1MBDDA00003 FET 1 J,0.063W
Q5601 B1MBEDA00015 FET 1 R1520 ERJ2GEJ103 M 10KOHM, 1
J,0.063W
Q5602 DSC2001S0L TRANSISTOR 1
R1521 ERJ2GEJ104 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
