Service Manuals, User Guides, Schematic Diagrams or docs for : panasonic LED TH-32F312M chassis SY56D Panasonic_TH-32F312M_Chassis_SY56D
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

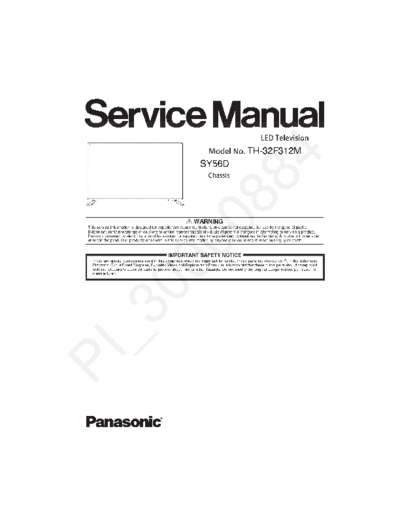

Image preview - the first page of the document
>> Download Panasonic_TH-32F312M_Chassis_SY56D documenatation <<
Text preview - extract from the document
TH-32F312M
SY56D
CONTENT
1. Technical Specification..............................................................................7
2. IPG LIST..................................................................................................23
3. BOM LIST................................................................................................24
4. Software Upgrade.....................................................................................26
5. Trouble Shooting............................................................... ......................27
6. Schematic Circuit Diagram.......................................................................28
TP.VST69T.PB733_V56T
1. STANDARD CONFIGURATION
PB733_A1 2*HDMI 1*USB (Mini)UART
PB733_A1CVBS/AUDIO IN,COAX,(Mini)UART ,EARPHONE
FUNCTIONS
OUT,HDMI#1,HDMI#2,ATV,USB#1
Notes --
FRONT VIEW
SIDE VIEW
OPTIONAL
--
FUNCTION
Note: If the configurations above can't meet your demand, please apply to our sales stuff.
TP.VST69T.PB733_V56T with backlight power under 25W, the main promotion backlight voltage is
between 33.6V-45.6V, and single backlight output.
Standard configurations above could match any following backlight Spec. Specific backlight current can be
selected according to customer's requirement. If the configurations below can't meet your demand, please
apply to our sales stuff.
Main Promotion Power and backlight Spec.
Power Power Output Backlight Value Backlight Connectors
48W 12V&19V 33.6V-45.6V/25W 6PIN-2.0
1
QR-ZZPJ-017A
TP.VST69T.PB733_V56T
2. BOARD PICTURE
Pictures are for reference only, specific to prevail in kind.
The optional connectors and functions are marked with "*".
Size230mm(L)*115mm(W)*1.6mm(H)
No. Position Description
1 *CNK1 IR&KEY&LED
2 CNA1 SPEAKER
3 J11 TCON
4 CNB2 PWR UPGRADE
QR-ZZPJ-017A
2
TP.VST69T.PB733_V56T
3. FEATURES
MAIN CHIPSET TSUMV56RBUT-Z1
OSD LANGUAGE
Asia English,Chinese
OSD
Panel Type TFT LCD
Panel Size 28-32
PANEL
Interface Mini LVDS(TCON)
Max Resolution 1366*768
TV(Details in 3.1) ATV(PAL,NTSC,SECAM)
Video System PAL/NTSC
CVBS
Video level 1.0 Vp-p◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
