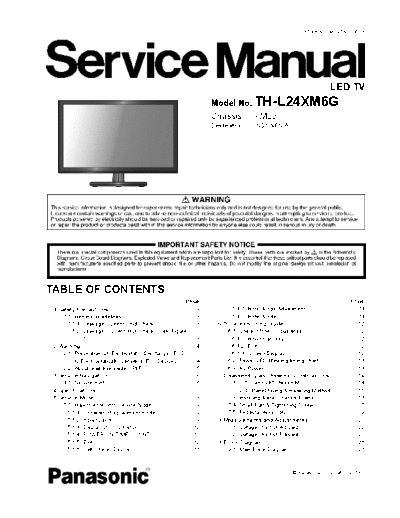

Image preview - the first page of the document
panasonic_th-l24xm6g_chassis_km23


>> Download panasonic_th-l24xm6g_chassis_km23 documenatation <<

Text preview - extract from the document
                                                                                                                            ORDER NO. MTV1301136CE




                                                                                                                                            LED TV
                                                                               Model No. TH-L24XM6G
                                                                               Chassis: KM23
                                                                               Destination:          INDONESIA




TABLE OF CONTENTS
                                                                     PAGE                                                                              PAGE
 1 Safety Precautions----------------------------------------------- 3                   5.1.7. Hotel Mode Adjustment ---------------------------- 11
    1.1. General Guidelines---------------------------------------- 3                    5.1.8. Hotel Mode-------------------------------------------- 11
      1.1.1. Leakage Current Cold Check---------------------- 3                  6   Troubleshooting Guide --------------------------------------- 12
      1.1.2. Leakage Current Hot Check (See Figure                                     6.1. Check of the IIC bus lines------------------------------ 12
             1.) --------------------------------------------------------- 3             6.1.1. How to access --------------------------------------- 12
 2 Warning -------------------------------------------------------------- 4              6.1.2. Exit ------------------------------------------------------ 12
    2.1. Prevention of Electrostatic Discharge (ESD)                                     6.1.3. Screen Display --------------------------------------- 12
         to Electrostatically Sensitive (ES) Devices---------- 4                       6.2. Power LED Blinking timing chart --------------------- 13
    2.2. About lead free solder (PbF)---------------------------- 5                    6.3. No Power--------------------------------------------------- 13
 3 Service Navigation ----------------------------------------------- 6          7   Disassembly and Assembly Instructions--------------- 14
    3.1. Service Hint ------------------------------------------------- 6              7.1. LVDS and LED Assembly ----------------------------- 14
 4 Specifications ----------------------------------------------------- 7              7.2. LCD Panel Fixing & Handling Method -------------- 15
 5 Service Mode ------------------------------------------------------ 9               7.3. Installing Metal Chassis Frame----------------------- 16
    5.1. How to enter into Service Mode ----------------------- 9                      7.4. Small Part & Tightening Screw ----------------------- 17
      5.1.1. Contents of adjustment mode --------------------- 9                       7.5. Pedestal Assembly -------------------------------------- 19
      5.1.2. How to exit---------------------------------------------- 9         8   Measurements and Adjustments -------------------------- 20
      5.1.3. Display of SOS History -----------------------------10                    8.1. Voltage chart of A-board ------------------------------- 20
      5.1.4. POWER ON TIME/COUNT -----------------------10                             8.2. Voltage chart of P-board ------------------------------- 20
      5.1.5. Exit-------------------------------------------------------10       9   Block Diagram --------------------------------------------------- 21
      5.1.6. Self Check (Device) --------------------------------- 11                  9.1. Main Block Diagram ------------------------------------- 21
