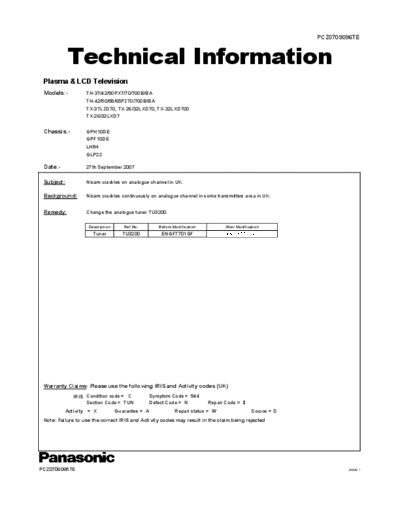

Image preview - the first page of the document
>> Download PCZ0709096TE documenatation <<
Text preview - extract from the document
PCZ0709096TE
Technical Information
Plasma & LCD Television
Models:- TH-37/42/50PX7/70/700B/BA
TH-42/50/58/65PZ70/700B/BA
TX-37LZD70, TX-26/32LXD70, TX-32LXD700
TX-26/32LXD7
Chassis:- GPH10DE
GPF10DE
LH64
GLP22
Date:- 27th September 2007
Subject: Nicam crackles on analogue channel in UK.
Background: Nicam crackles continuously on analogue channel in some transmitters area in UK.
Remedy: Change the analogue tuner TU3200.
Description Ref.No. Before Modification After Modification
Tuner TU3200 ENGF7701GF ENGF7711GF
Warranty Claims- Please use the following IRIS and Activity codes (UK)
IRIS Condition code = C Symptom Code = 544
Section Code = TUN Defect Code = N Repair Code = I
Activity = X Guarantee = A Repair status = W Source = D
Note: Failure to use the correct IRIS and Activity codes may result in the claim being rejected
PCZ0709096TE ISSUE 1
