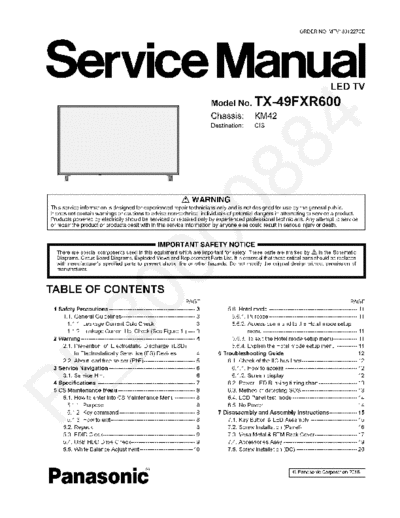

Image preview - the first page of the document
>> Download Panasonic_TX-49FXR600_Chassis_KM42 documenatation <<
Text preview - extract from the document
ORDER NO. MTV1801227CE
LED TV
Model No. TX-49FXR600
Chassis: KM42
Destination: CIS
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 5.6. Hotel mode ------------------------------------------------ 11
1.1. General Guidelines---------------------------------------- 3 5.6.1. Purpose ------------------------------------------------ 11
1.1.1. Leakage Current Cold Check---------------------- 3 5.6.2. Access command to the Hotel mode setup
1.1.2. Leakage Current Hot Check (See Figure 1.) ---- 3 menu --------------------------------------------------- 11
2 Warning -------------------------------------------------------------- 4 5.6.3. To exit the Hotel mode setup menu------------- 11
2.1. Prevention of Electrostatic Discharge (ESD) 5.6.4. Explain the Hotel mode setup menu ----------- 11
to Electrostatically Sensitive (ES) Devices---------- 4 6 Troubleshooting Guide --------------------------------------- 12
2.2. About lead free solder (PbF)---------------------------- 5 6.1. Check of the IIC bus lines------------------------------ 12
3 Service Navigation ----------------------------------------------- 6 6.1.1. How to access --------------------------------------- 12
3.1. Service Hint ------------------------------------------------- 6 6.1.2. Screen display --------------------------------------- 12
4 Specifications ----------------------------------------------------- 7 6.2. Power LED Blinking timing chart --------------------- 13
5 CS Maintenance Menu ------------------------------------------ 8 6.3. Method of detecting SOS ------------------------------ 13
5.1. How to enter into CS Maintenance Menu ----------- 8 6.4. LCD Panel test mode ----------------------------------- 14
5.1.1. Purpose ------------------------------------------------- 8 6.5. No Power--------------------------------------------------- 14
5.1.2. Key command ----------------------------------------- 8 7 Disassembly and Assembly Instructions--------------- 15
5.1.3. How to exit---------------------------------------------- 8 7.1. Key Button & LED Assembly ------------------------- 15
5.2. Repack ------------------------------------------------------- 8 7.2. Screw Installation (Panel)------------------------------ 16
5.3. EDID Clock-------------------------------------------------- 9 7.3. Vesa Metal & BTM Back Cover----------------------- 17
5.4. USB HDD Drive Check----------------------------------- 9 7.4. Accessories Assy ---------------------------------------- 19
5.5. White Balance Adjustment -----------------------------10 7.5. Screw Installation (BC) --------------------------------- 20
