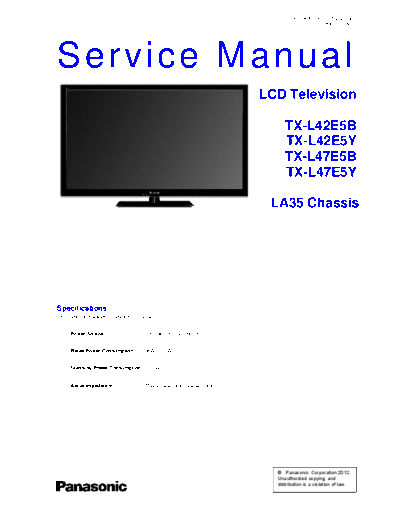

>> Download PCZ1202020CE documenatation <<Text preview - extract from the document ORDER No. PCZ1202020CE
REVISION 2
Service Manual
LCD Television
TX-L42E5B
TX-L42E5Y
TX-L47E5B
TX-L47E5Y
LA35 Chassis
Specifications
Information in brackets [ ] refers to model 47"
Power Source: 220-240V AC, 50 / 60Hz
Rated Power Consumption: 86W [118W]
Stand-by Power Consumption: 0.15W
Aerial Impedance: 75 unbalanced, Coaxial Type
