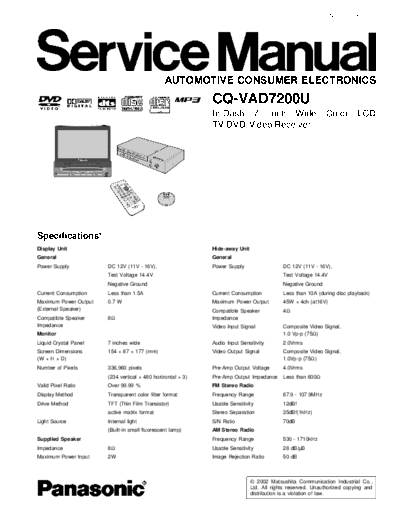

Image preview - the first page of the document
Panasonic_CQVAD7200U_[SM]


>> Download Panasonic_CQVAD7200U_[SM] documenatation <<

Text preview - extract from the document
                                                                                                      ORDER No.ACED020611C7
                                                                                                                         C7




                                                AUTOMOTIVE CONSUMER ELECTRONICS
                                                             CQ-VAD7200U
                                                             In-Dash 7 Inch Wide                             Color        LCD
                                                             TV/DVD-Video/Receiver




Specifications*
Display Unit                                                 Hide-away Unit
General                                                      General
Power Supply           DC 12V (11V - 16V),                   Power Supply                  DC 12V (11V - 16V),
                       Test Voltage 14.4V                                                  Test Voltage 14.4V
                       Negative Ground                                                     Negative Ground
Current Consumption    Less than 1.5A                        Current Consumption           Less than 10A (during disc playback)
Maximum Power Output   0.7 W                                 Maximum Power Output          45W
