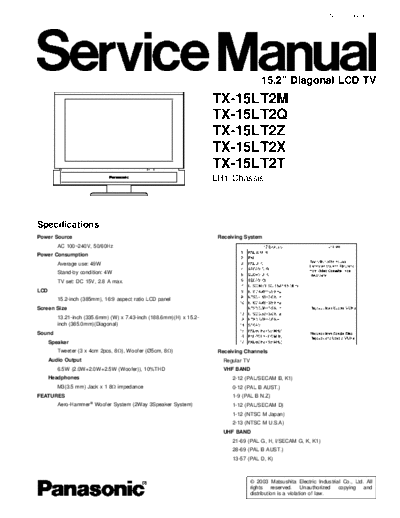

Image preview - the first page of the document
Panasonic_LH1_TX-15LT2M_TX-15LT2Q_TX-15LT2Z_TX-15LT2X_TX-15LT2T_[SM]


>> Download Panasonic_LH1_TX-15LT2M_TX-15LT2Q_TX-15LT2Z_TX-15LT2X_TX-15LT2T_[SM] documenatation <<

Text preview - extract from the document
                                                                                                             ORDER NO. ITD0303001C2




                                                                                         15.2" Diagonal LCD TV
                                                                     TX-15LT2M
                                                                     TX-15LT2Q
                                                                     TX-15LT2Z
                                                                     TX-15LT2X
                                                                     TX-15LT2T
                                                                     LH1 Chassis




Specifications
Power Source                                                          Receiving System
         AC 100~240V, 50/60Hz
Power Consumption
         Average use: 49W
         Stand-by condition: 4W
         TV set: DC 15V, 2.8 A max.
LCD
         15.2-inch (385mm), 16:9 aspect ratio LCD panel
Screen Size
         13.21-inch (335.6mm) (W) x 7.43-inch (188.6mm)(H) x 15.2-
         inch (385.0mm)(Diagonal)
Sound
      Speaker
         Tweeter (3 x 4cm 2pcs, 89), Woofer (
