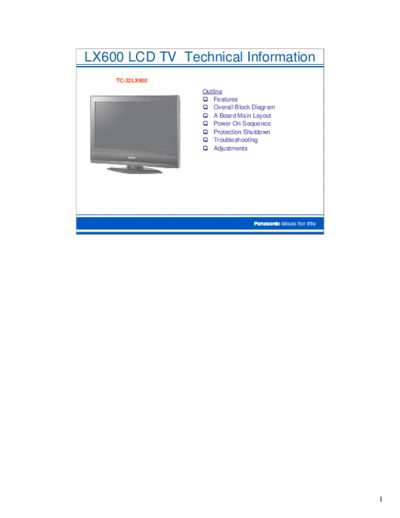

Image preview - the first page of the document
Panasonic_TC-32LX600_[TM]


>> Download Panasonic_TC-32LX600_[TM] documenatation <<

Text preview - extract from the document
LX600 LCD TV Technical Information
    TC-32LX600
                 Outline
                     Features
                     Overall Block Diagram
                     A Board Main Layout
                     Power On Sequence
                     Protection Shutdown
                     Troubleshooting
                     Adjustments




                                             1
                                 Features
           Model                     TC-LX60                   TC-LX600

Display Capability           480p/720p/1080i           480p/720p/1080i


 Aspect Ratio                16:9 (Widescreen)         16:9 (Widescreen)

 Aspect Control              Normal, Zoom, Full, and   Normal, Zoom, Full, and
                             Just                      Just
 Resolution (Number of       1,049,088 (1366x768)      1,049,088 (1366x768)
 Pixels)                     pixels                    pixels
 Contrast Ratio              Up to 3000:1              Up to 3000:1

 Brightness (Panel, cd/m2)   500                       500

 Integrated ATSC Tuner       Yes                       Yes

 HDMI-HDCP Interface         1                         2

 Composite Video Input       3                         3

 S-Video Inputs              2                         2

 Component Video Input       1                         1

 Monitor Output              1                         1

 Headphone Jack              Yes                       Yes




                                                                                 2
                     Overall Block Diagram




The TC-26/32LX60 and 600 series LCD Direct View TVs differ from previous
models in that all signal processing is accomplished on the A board. The
video processing function that had been previously accomplished by the DG
board is now performed on the A Board by IC4002. This IC serves as the
Main micro and Video /Audio Panel controller. IC4004 is a Field
Programmable Gate array that is responsible for the pixel conversion and
addressing of the Active Matrix display within the LCD Panel. This IC also
contains the low voltage differential signaling (LVDS) transmitter used for the
conversion of the 8-bit RGB video into a differential RGB output signal. The
LVDS receiver on the LCD panel converts the differential RGB output signal
from the A board into an 8-bit RGB signal that is output to the LCD Panel.




                                                                                  3
                            Board Layout



                                                              Non - Serviceable
                                          Non - Serviceable




                      Non - Serviceable




This is the board layout of the TC-LX600 LCD Television. The P board, DT
board, and A board are non serviceable. The G board, AP board, and V
board are serviceable.




                                                                                  4
                      Board Layout Pictorial




P Board
