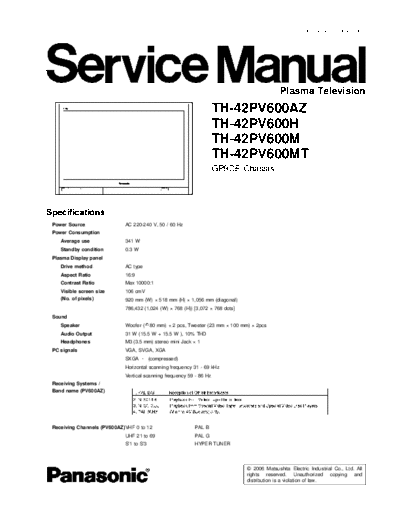

Image preview - the first page of the document
Panasonic_TH-42PV600M_TH-42PV600AZ_TH-42PV600MT_TH-42PV600H_[SM]


>> Download Panasonic_TH-42PV600M_TH-42PV600AZ_TH-42PV600MT_TH-42PV600H_[SM] documenatation <<

Text preview - extract from the document
                                                                                                          ORDER NO.ITD0604019CE




                                                                                               Plasma Television
                                                                      TH-42PV600AZ
                                                                      TH-42PV600H
                                                                      TH-42PV600M
                                                                      TH-42PV600MT
                                                                      GP9DE Chassis




Specifications
 Power Source                AC 220-240 V, 50 / 60 Hz
 Power Consumption
    Average use              341 W
    Standby condition        0.3 W
 Plasma Display panel
    Drive method             AC type
    Aspect Ratio             16:9
    Contrast Ratio           Max 10000:1
    Visible screen size      106 cmV
    (No. of pixels)          920 mm (W)
