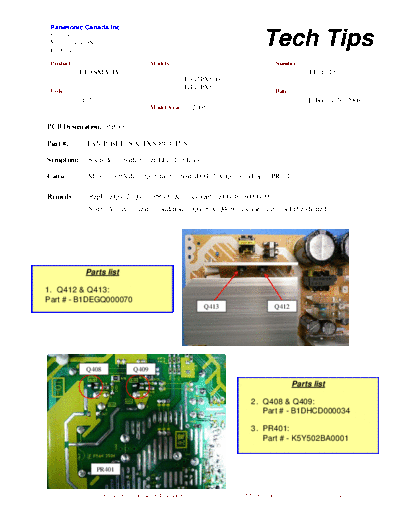

Image preview - the first page of the document
Panasonic_TH-42PX60_TH-42PX600_10_blinks_repair_tips


>> Download Panasonic_TH-42PX60_TH-42PX600_10_blinks_repair_tips documenatation <<

Text preview - extract from the document
 Panasonic Canada Inc.
 5770 Ambler Drive
 Mississauga ON
 L4W 2T3
                                                                           Tech Tips
 Product:                              Models:                                  Number:
            PLASMA TV                                                                       TT-08-15
                                                     TH42PX600
 Code:
                                                     TH42PX60                   Date:
            B62                                                                             February 26, 2008
                                       Model Year:     2006

PCB Designation: P Board

Part #:      TXN/P1BFTUS & TXN/P1BJTUS

Symptom:      Shuts down with power LED 10 blinks.

Cause:        Missing 395Vdc output due to shorted Q412 & Q413 and open PR401.

Remedy:       Replace Q412, Q413, PR401 & check/replace Q408 and Q409.
              Note: Always confirm condition of Q408 & Q409, in some cases could be shorted.




             Parts list

1. Q412 & Q413:
Part # - B1DEGQ000070
                                                              Q413             Q412




             Q408               Q409

                                                                                        Parts list

                                                                       2. Q408 & Q409:
                                                                          Part # - B1DHCD000034

                                                                       3. PR401:
                                                                          Part # - K5Y502BA0001


                  PR401


                  Published by Customer & Product Assurance          TT-08-15.doc                      Page 1
