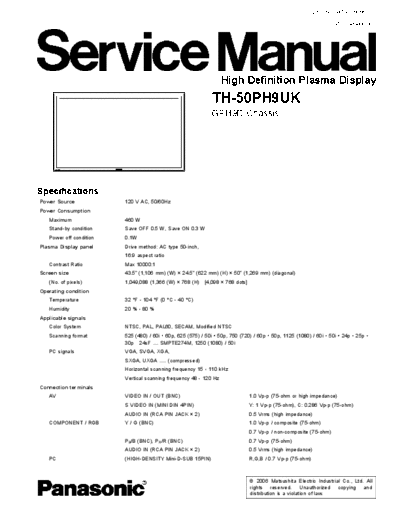

Image preview - the first page of the document
Panasonic_TH-50PH9UK_[SM]


>> Download Panasonic_TH-50PH9UK_[SM] documenatation <<

Text preview - extract from the document
                                                                                                     ORDER NO. MTNC060689CE

                                                                                                                   D10 Canada: B07




                                                                   High Definition Plasma Display
                                                             TH-50PH9UK
                                                             GPH9D Chassis




Specifications
Power Source             120 V AC, 50/60Hz
Power Consumption
   Maximum               460 W
   Stand-by condition    Save OFF 0.5 W, Save ON 0.3 W
   Power off condition   0.1W
Plasma Display panel     Drive method: AC type 50-inch,
                         16:9 aspect ratio
   Contrast Ratio        Max 10000:1
Screen size              43.5" (1,106 mm) (W)
