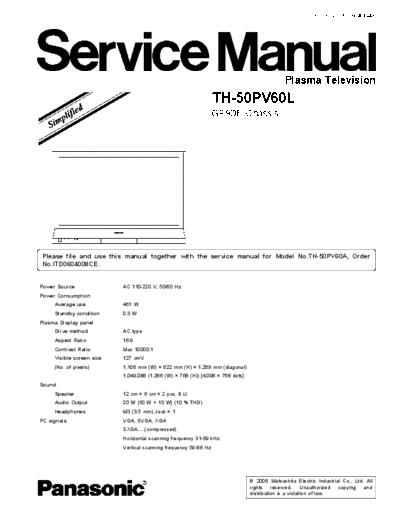

Image preview - the first page of the document
Panasonic_TH-50PV60L_[SM]


>> Download Panasonic_TH-50PV60L_[SM] documenatation <<

Text preview - extract from the document
                                                                                                         ORDER NO.ITD0604014AE




                                                                                              Plasma Television
                                                                  TH-50PV60L
                                                                  GP9DE Chassis




 Please file and use this manual together with the service manual for Model No.TH-50PV60A, Order
 No.ITD0604008CE.


Power Source               AC 110-220 V, 50/60 Hz
Power Consumption
     Average use           461 W
     Standby condition     0.3 W
Plasma Display panel
     Drive method          AC type
     Aspect Ratio          16:9
     Contrast Ratio        Max 10000:1
     Visible screen size   127 cmV
     (No. of pixels)       1,106 mm (W)
