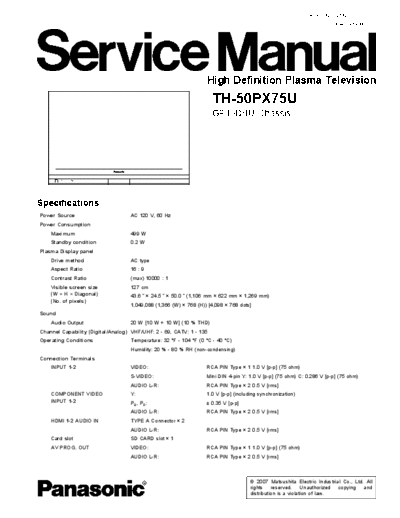

Image preview - the first page of the document
Panasonic_TH-50PX75U_[SM]


>> Download Panasonic_TH-50PX75U_[SM] documenatation <<

Text preview - extract from the document
                                                                                                            ORDER NO.MTNC070303CE
                                                                                                                     B34 Canada: B07




                                                                  High Definition Plasma Television
                                                                     TH-50PX75U
                                                                     GP10DHU Chassis




Specifications
Power Source                       AC 120 V, 60 Hz
Power Consumption
    Maximum                        499 W
    Standby condition              0.2 W
Plasma Display panel
    Drive method                   AC type
    Aspect Ratio                   16 : 9
    Contrast Ratio                 (max) 10000 : 1
    Visible screen size            127 cm
    (W
