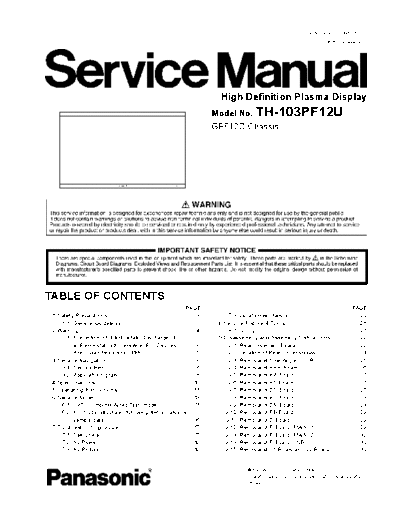

Image preview - the first page of the document
Panasonic_TH-103PF12U_[SM]


>> Download Panasonic_TH-103PF12U_[SM] documenatation <<

Text preview - extract from the document
                                                                                                                       Order Number ITD0911162CE
                                                                                                                                     B34 Canada: D10




                                                                                High Definition Plasma Display
                                                                              Model No. TH-103PF12U
                                                                              GPF12D Chassis




TABLE OF CONTENTS
                                                                    PAGE                                                                          PAGE
 1 Safety Precautions----------------------------------------------- 3             7.4. Local screen failure-------------------------------------- 20
     1.1. General Guidelines---------------------------------------- 3         8 Service Fixture & Tools --------------------------------------- 21
 2 Warning -------------------------------------------------------------- 4        8.1. SC jig-------------------------------------------------------- 21
     2.1. Prevention of Electrostatic Discharge (ESD)                          9 Disassembly and Assembly Instructions--------------- 22
          to Electrostatically Sensitive (ES) Devices---------- 4                  9.1. Rear Cover and Board---------------------------------- 22
     2.2. About lead free solder (PbF)---------------------------- 5               9.2. Location of Rear Cover screws----------------------- 23
 3 Service Navigation ----------------------------------------------- 6            9.3. Removal of Side Angle (L), (R) ----------------------- 25
     3.1. Service Hint ------------------------------------------------- 6         9.4. Removal of HHH-Board -------------------------------- 26
     3.2. Applicable signals ----------------------------------------- 8           9.5. Removal of HA-Board----------------------------------- 27
 4 Specifications ----------------------------------------------------10           9.6. Removal of H5-Board ----------------------------------- 27
 5 Operating Instructions-----------------------------------------11               9.7. Removal of DS-Board ---------------------------------- 27
 6 Service Mode -----------------------------------------------------13            9.8. Removal of HX-Board----------------------------------- 28
     6.1. CAT (Computer Aided Test) mode -------------------13                     9.9. Removal of DN-Board ---------------------------------- 28
     6.2. IIC mode structure (following items value is                           9.10. Removal of PB-Board----------------------------------- 29
          sample data) -----------------------------------------------16          9.11. Removal of D-Board------------------------------------- 29
 7 Troubleshooting Guide ----------------------------------------17              9.12. Removal of P-Board (MAIN_1) ----------------------- 29
     7.1. Self Check--------------------------------------------------17         9.13. Removal of P-Board (MAIN_2) ----------------------- 30
     7.2. No Power ---------------------------------------------------19         9.14. Removal of P-Board (SUB)---------------------------- 30
     7.3. No Picture --------------------------------------------------19        9.15. Removal of S1-Board and V2-Board---------------- 30
